Mahr MarCator 810 SW IP54 Dial Indicator – Range: 10mm ; Graduation: 0.01mm ; DIN 878 ; IP54 ; Shockproof
Product image
-50%
Product image
Product image

Mahr MarCator 810 SW IP54 Dial Indicator – Range: 10mm ; Graduation: 0.01mm ; DIN 878 ; IP54 ; Shockproof

Original price was: $97.20.Current price is: $48.60.

SKU: 4315000.0 Category:

Description

  • Dial indicator with IP protection MarCator 810 SW
  • IP protection category: IP 54
  • DIN 878
  • Measuring span in mm: 10mm
  • Graduation value mm: 0.01
  • Package contains: case
  • High contrast dial face
  • Adjustable tolerance markers
  • Chrome plated housing
  • Precision gears and pinions
  • Protection cap on end of measuring pin, dial plate ring, and transparent panel with O-rings sealed
  • Rubber bellows on measuring pin to protect against the penetration of liquids and contaminations

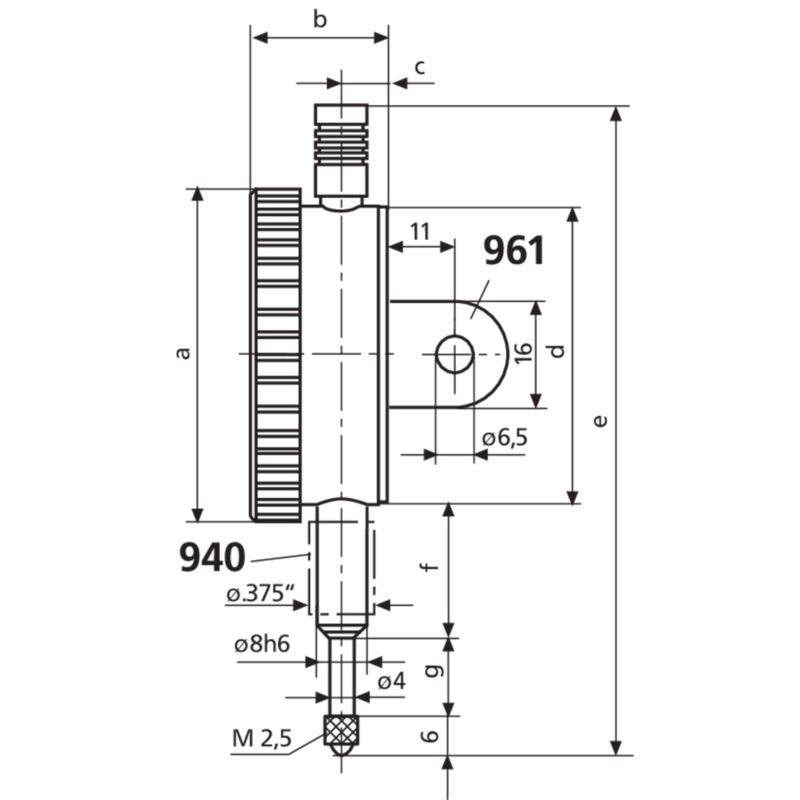

Measuring span in mm 10mm Product type 810 SW Graduation value mm 0.01 Standard DIN 878 IP protection category IP 54 Figur on dial face 0 – 100 Range per rev. in mm 1mm Error limit measuring range m 15m Error limit 1 revolution m 10m Error limit 1/2 revolution m 9m Error limit 1/10 revolution m 5m Measuring value hysteresis fu (m) 3m Repeatability fw (m) 3m Overtravel mm 0.1mm Dial color White Dimensions a 61 mm | b 24.2 mm | c 7.9 mm | d 52 mm | e 127.6 mm | f 22 mm | g 22.1 mm
