Mahr MarCator 810 SB Safety Dial Indicator – Range: 0.8 mm ; Graduation 0.01mm ; DIN 878 ; Shockproof
Product image
-50%
Product image
Product image

Mahr MarCator 810 SB Safety Dial Indicator – Range: 0.8 mm ; Graduation 0.01mm ; DIN 878 ; Shockproof

Original price was: $86.40.Current price is: $43.20.

SKU: 4317000.0 Category:

Description

  • Safety dial indicator MarCator 810 SB
  • DIN 878
  • Measuring span in mm: 0.8mm
  • Graduation value mm: 0.01
  • Package contains: case
  • High contrast dial face
  • Adjustable tolerance markers
  • Chrome plated housing
  • Protection cap on end of measuring pin
  • Limited measuring range to ensure readings without mistakes
  • Large free stroke, e.g. to make it easier to insert testpieces into measuring devices
  • Precision gears and pinions

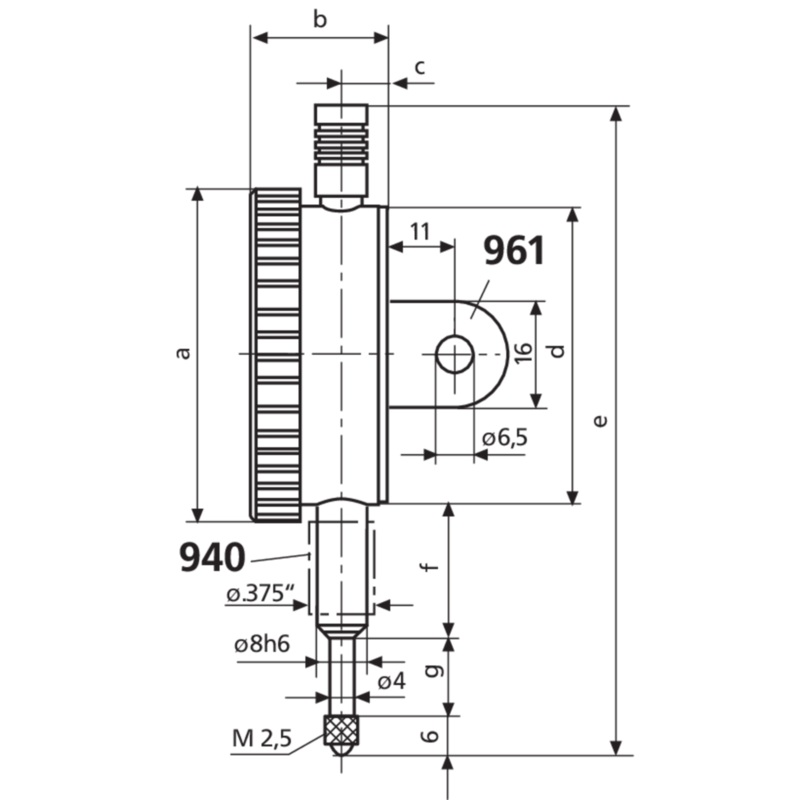

Measuring span in mm 0.8mm Product type 810 SB Graduation value mm 0.01 Standard DIN 878 Figur on dial face 40 – 0 – 40 Range per rev. in mm 0.8mm Error limit measuring range m 7m Error limit 1/2 revolution m 6m Error limit 1/10 revolution m 5m Measuring value hysteresis fu (m) 3m Repeatability fw (m) 3m Overtravel mm 9mm Dial color White Dimensions a 58 mm | b 23 mm | c 7.5 mm | d 52 mm | e 120 mm | f 22 mm | g 15 mm
