Mahr MarCator 810 S Dial Indicator – Range: 10mm; Graduation 0.01mm ; DIN 878 ; Shockproof

-50%

Mahr MarCator 810 S Dial Indicator – Range: 10mm; Graduation 0.01mm ; DIN 878 ; Shockproof

Original price was: $69.30.Current price is: $34.65.

SKU: 4311000.0 Category: Dial Indicators

Description

Description

Dial indicator MarCator 810 S
DIN 878
Measuring span in mm: 10mm
Graduation value mm: 0.01
Package contains: case

High contrast dial face
Adjustable tolerance markers
Chrome plated housing
Lifter protection cap on the measuring spindle
Precision gears and pinions

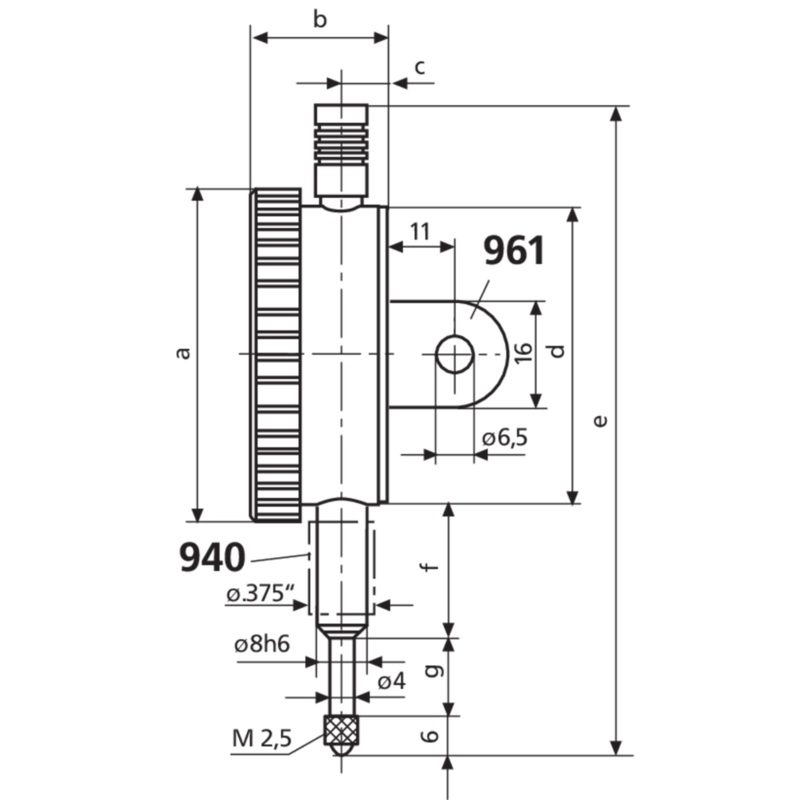

Measuring span in mm 10mm Product type 810 S Graduation value mm 0.01 Standard DIN 878 Figur on dial face 0 – 100 Range per rev. in mm 1mm Error limit measuring range m 15m Error limit 1 revolution m 10m Error limit 1/2 revolution m 9m Error limit 1/10 revolution m 5m Measuring value hysteresis fu (m) 3m Repeatability fw (m) 3m Overtravel mm 0.1mm Scale diameter 50mm Dial color White Dimensions a 58 mm | b 23 mm | c 7.5 mm | d 52 mm | e 112 mm | f 21 mm | g 16 mm
