Mahr MarCator 810 A Dial Indicator- Range: 10mm ; Graduation 0.01mm ; DIN 878
Product image
-20%
Product image
Product image

Mahr MarCator 810 A Dial Indicator- Range: 10mm ; Graduation 0.01mm ; DIN 878

Original price was: $48.00.Current price is: $38.40.

SKU: 4311050.0 Category:

Description

  • Dial indicator MarCator 810 A
  • DIN 878
  • Measuring span in mm: 10mm
  • Graduation value mm: 0.01
  • Package contains: case
  • High contrast dial face
  • Adjustable tolerance markers
  • Chrome plated housing
  • Lifter protection cap on the measuring spindle
  • Precision gears and pinions

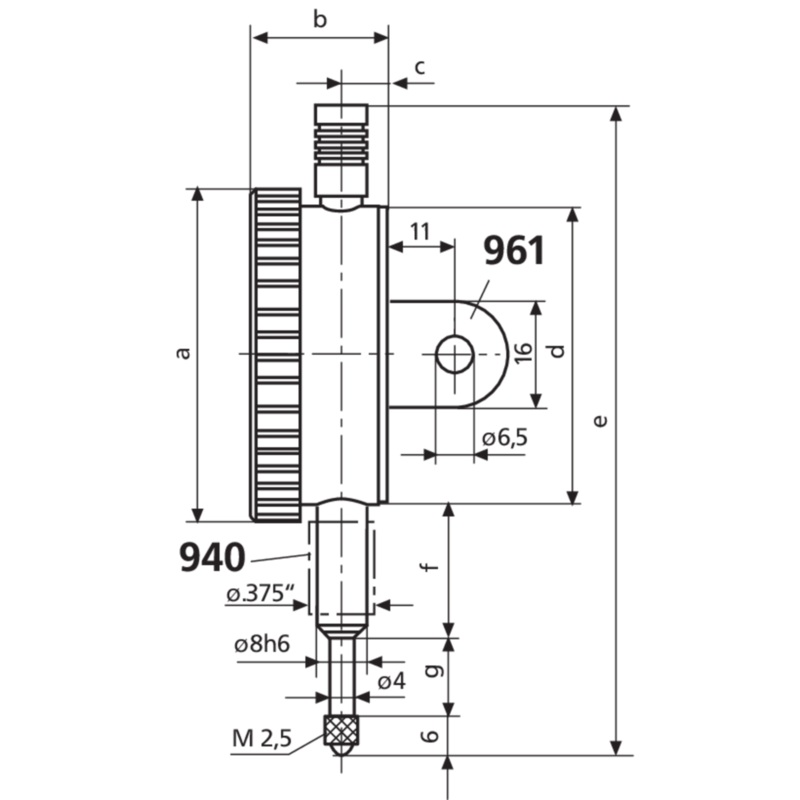

Measuring span in mm 10mm Product type 810 A Graduation value mm 0.01 Standard DIN 878 Figur on dial face 0 – 100 Range per rev. in mm 1mm Error limit measuring range m 15m Error limit 1 revolution m 10m Error limit 1/2 revolution m 9m Error limit 1/10 revolution m 5m Measuring value hysteresis fu (m) 3m Repeatability fw (m) 3m Overtravel mm 0.1mm Scale diameter 50mm Dial color White Dimensions a 58 mm | b 23 mm | c 7.5 mm | d 52 mm | e 112 mm | f 22 mm | g 15 mm
