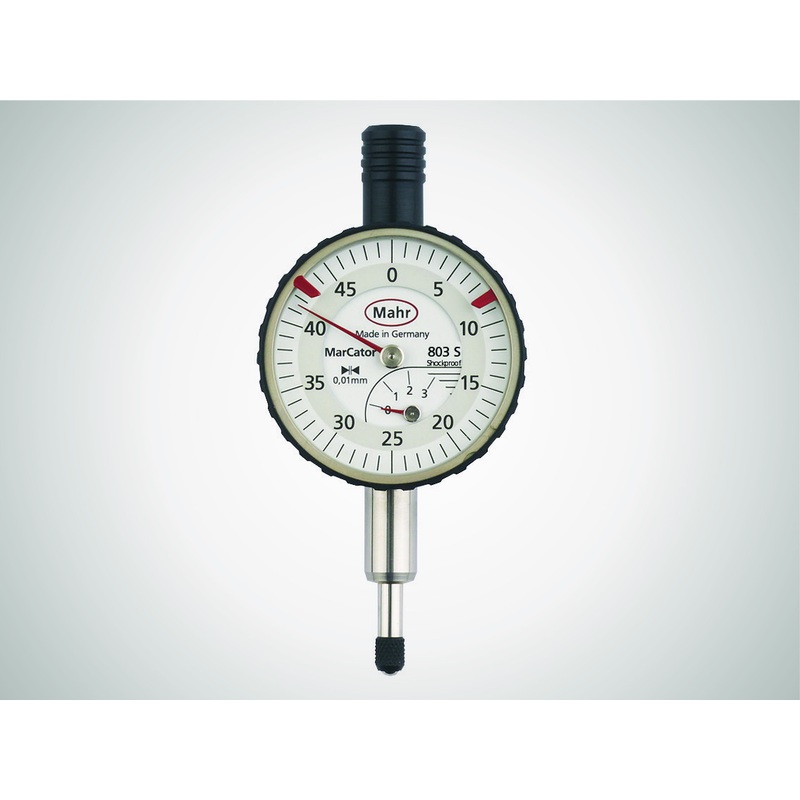

Mahr MarCator 803 S Small Dial Indicator – Range: 3mm ; Graudation 0.01mm ; DIN 878 ; Shockproof
Product image
-50%
Product image
Product image

Mahr MarCator 803 S Small Dial Indicator – Range: 3mm ; Graudation 0.01mm ; DIN 878 ; Shockproof

Original price was: $70.20.Current price is: $35.10.

SKU: 4324000.0 Category:

Description

  • Small dial indicators MarCator 803 A
  • DIN 878
  • Measuring span in mm: 3mm
  • Graduation value mm: 0.01
  • Package contains: case
  • High contrast dial face
  • Adjustable tolerance markers
  • Chrome plated housing
  • Lifter protection cap on the measuring spindle
  • Precision gears and pinions

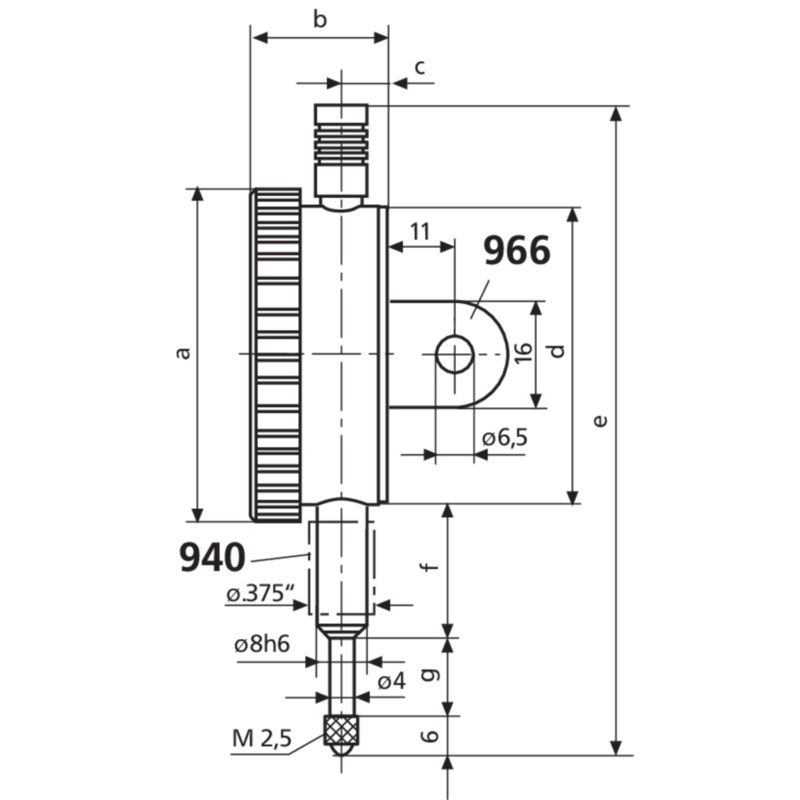

Measuring span in mm 3mm Product type 803 A Graduation value mm 0.01 Standard DIN 878 Figur on dial face 0 -50 Range per rev. in mm 0.5mm Error limit measuring range m 10m Error limit 1 revolution m 9m Error limit 1/2 revolution m 8m Error limit 1/10 revolution m 5m Measuring value hysteresis fu (m) 3m Repeatability fw (m) 3m Overtravel mm 0.1mm Scale diameter 34mm Dial color White Dimensions a 40 mm | b 20.6 mm | c 6.8 mm | d 37 mm | e 80 mm | f 15.5 mm | g 5.5 mm
