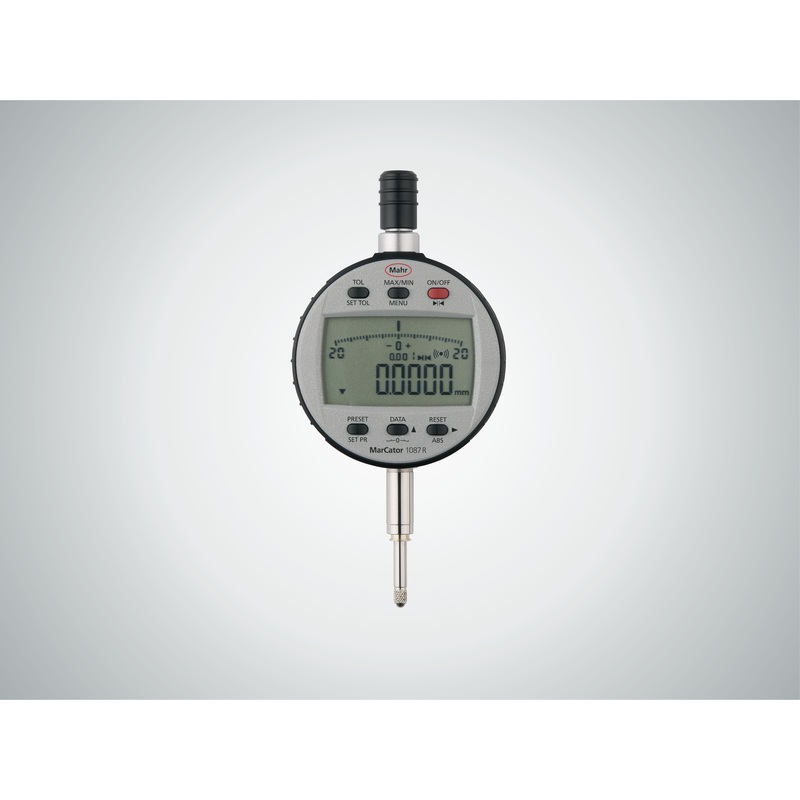

Mahr MarCator 1087 Ri IP42 Digimatic Digital Indicator | Range 25mm | Resolution 0.0005, 0.001, 0.002, 0.005, 0.01mm

Description

• Digital indicator MarCator 1087 Ri
• IP protection category: IP 42
• Data interface: Integrated Wireless, USB, Digimatic, Opto RS-232C
• Factory standard
• Measuring span in mm: 25mm
• Resolution: 0.0005, 0.001, 0.002, 0.005, 0.01mm
• Resolution inches: .00002″, .00005″, .0001″, .0002″, .0005″
• Package contains: battery, test certificate, instruction manual, Cardboard box
• Integrated wireless transmitter
• High-contrast LCD display
• Operating and display unit can be rotated 280&deg
• Lift-off cap on end of measuring pin
• Mounting shaft and measuring pin in hardened stainless steel
• Ready to measure immediately thanks to reference system

Product type 1087 Ri Measuring span in mm 25mm Measuring span (inches) 1″ Resolution 0.0005 mm , 0.001 mm , 0.002 mm , 0.005 mm , 0.01 mm Graduation value mm 0,0005 , 0,001 , 0,002 , 0,005 , 0,01 Graduation value inches .000002” , .00005″ , .0001” , .0002” , .0005″ Error limit (mm) 0.004mm Repeatability mm 0.001mm Measuring force (N) 0.65 – 0.9 Height of digits 8.5mm Range of analog display mm 0,01 , 0,02 , 0,04 , 0,1 , 0,2 Range of analog display inches .0004″ , .001” , .002″ , .004″ , .01”
