Mahr MarCator 1086 Ri Digital Indicator: Range 12.5mm/0.5; Resolution 0.01mm OR Selectable

Description

• Integrated wireless transmitter
• High-contrast LCD display
• Operating and display unit can be rotated 280&deg
• Mounting shaft and measuring pin in hardened stainless steel
• Ready to measure immediately thanks to reference system

Selectable Resolution:

Measuring span in mm 12.5mm Product type 1086 Ri Measuring span (inches) .5″ Resolution 0.0005 mm , 0.001 mm , 0.002 mm , 0.005 mm , 0.01 mm Standard Factory standard IP protection category IP 42 Battery type CR 2450N (3V Lithium) Error limit (mm) 0.004mm Repeatability mm 0.001mm Measuring force (N) 0.65 – 0.9 Height of digits 11mm

Please select resolution preference.

0.01mm/0.0005″:

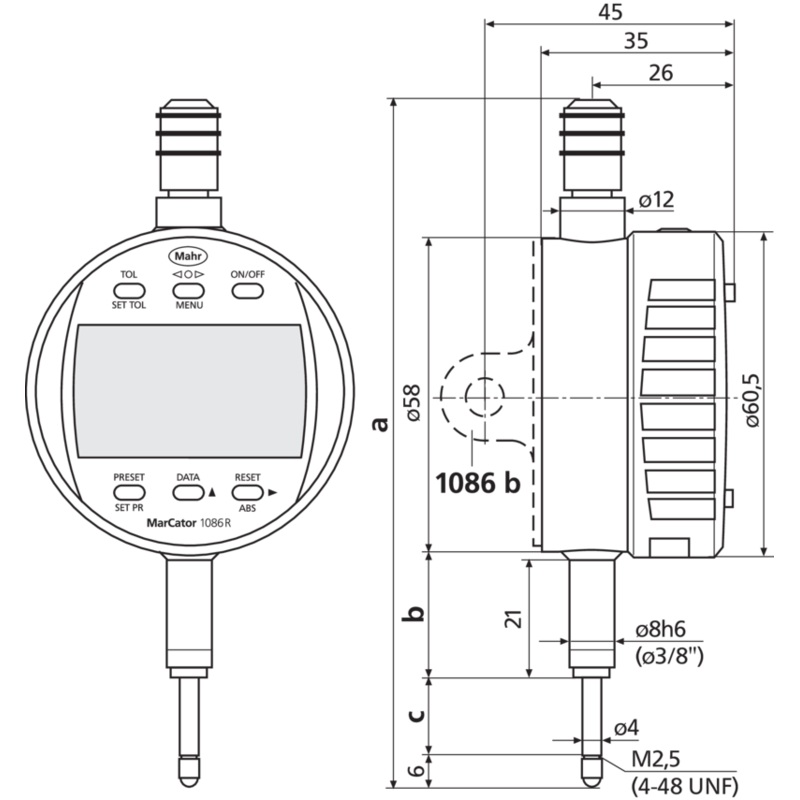

Measuring span in mm 12.5mm Product type 1086 Ri Measuring span (inches) .5″ Resolution 0.01 mm Standard Factory standard IP protection category IP 42 Battery type CR 2450N (3V Lithium) Error limit (mm) 0.02mm Repeatability mm 0.01mm Measuring force (N) 0.65 – 0.9 Height of digits 11mm Dimensions
