Mahr MarCator 1086 R Digimatic IP42 Digital Indicator : 25mm Range, Selectable Resolution

Description

• Digital indicator MarCator 1086 R
• IP protection category: IP 42
• Data interface: Digimatic, Opto RS-232C, USB
• Factory standard
• Measuring span in mm: 25mm
• Resolution: 0.0005, 0.001, 0.002, 0.005, 0.01
• Resolution inches: .00002″, .00005″, .0001″, .0002″, .0005″
• Package contains: instruction manual, battery

• High contrast LCD display, thus very clear and safe to read
• Operating and display unit (bezel) can be rotated through 280
• Lifter protection cap on the measuring spindle
• Mounting shank and measuring spindle are both made of hardened stainless steel
• Immediate measurements due to the Reference System

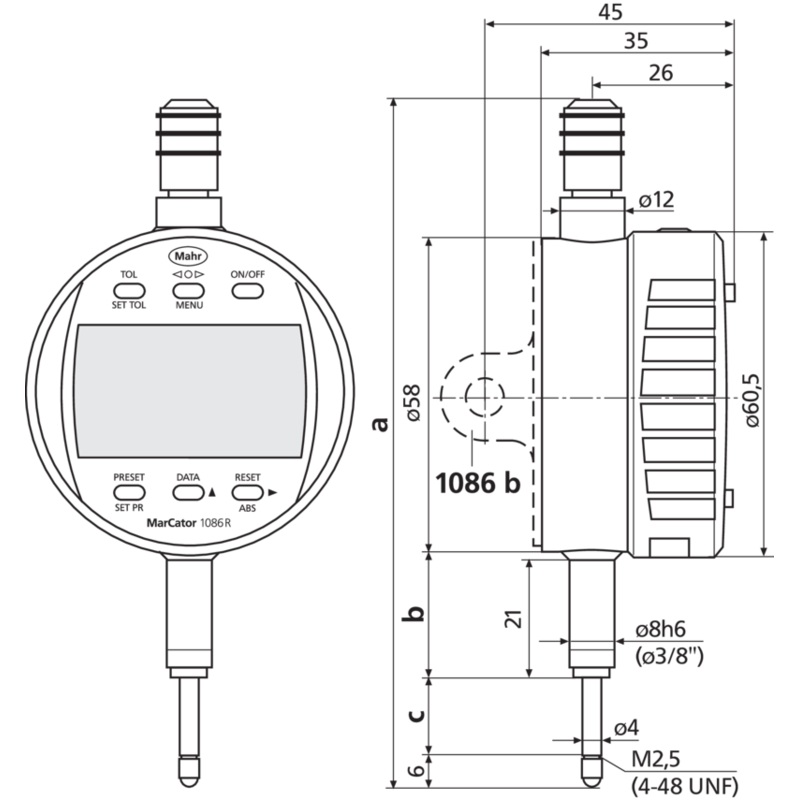

Measuring span in mm 25mm Product type 1086 R Measuring span (inches) 1″ Resolution 0.0005 mm , 0.001 mm , 0.002 mm , 0.005 mm , 0.01 mm Standard Factory standard IP protection category IP 42 Battery type CR 2450N (3V Lithium) Error limit (mm) 0.004mm Repeatability mm 0.001mm Measuring force (N) 0.65 – 1.15 Height of digits 11mm Dimensions a 153.4 mm | b 26.8 mm | c 26.5 mm |
