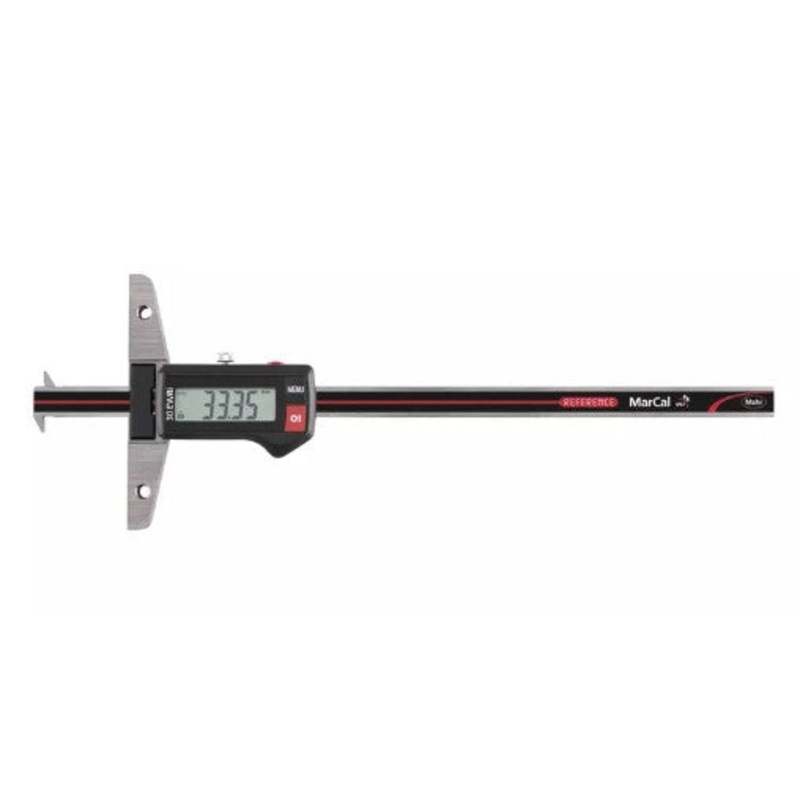

Mahr MarCal 30 EWR IP67 Digital Depth Gauge | 0-150mm/0-6 ; 0-200mm/0-8 ; 0-300mm/0-12 | Resolution 0.01 mm/0.0005

Description

• Digital depth gage MarCal 30 EWR
• Measuring range mm: 0 – 150 mm
• Resolution mm/inch: 0.01 mm / 0.0005 inch
• Data interface: USB, Opto RS-232C, Digimatic

• P protection category: IP 67
• Package contains: battery, test certificate, instruction manual, case
• High contrast digit display
• Locking screw above
• Lapped guideway
• Measuring surfaces made of steel
• Slide and beam made of hardened stainless steel
• Immediate measurements due to the Reference System
• Raised guideway for the protection of the scale
• Excellent resistance against dust, coolants and lubricants
• Dirt wipers are integrated in the slide

Measuring range mm

0-150mm

0-200mm

0-300mm

Measuring range

0-6″

0-8″

0-12″

Resolution mm/inch 0.01 / .0005″ Error limit (mm) 0.03mm Error limit inches .001″ Standard ISO 13385-2 Battery type CR 2032 (3V Lithium)
