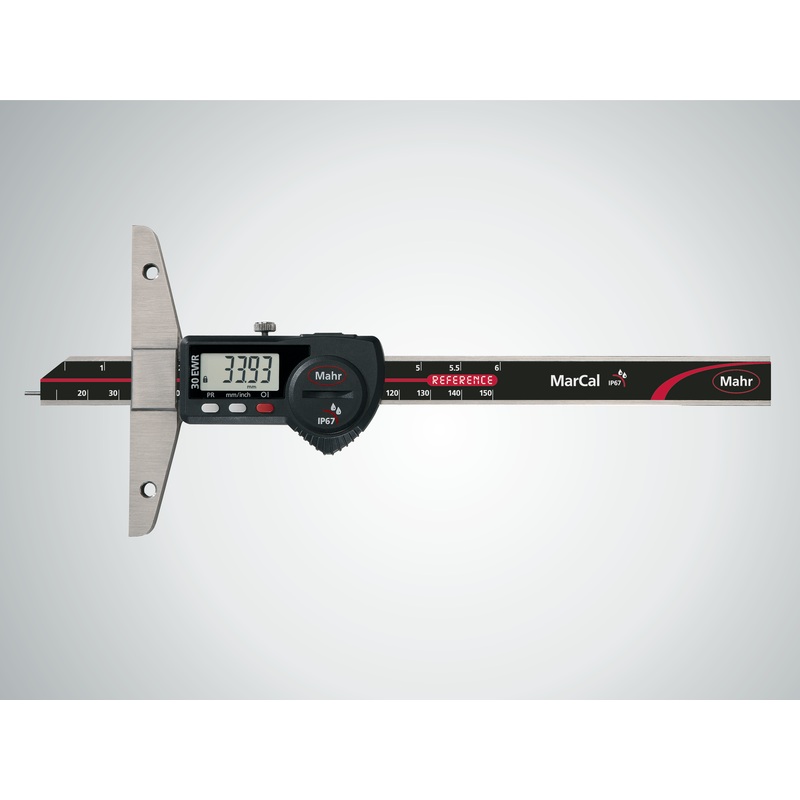

Mahr MarCal 30 EWR IP67 Digimatic Digital Depth Gauge: 0-150mm, 0-300mm

Description

Please select caliper size above:

• Digital depth gage MarCal 30 EWR
• Measuring range mm: 0 – 150 mm, 0 – 300mm
• Resolution mm/inch: 0.01 mm / 0.0005 inch
• Data interface: USB, Opto RS-232C, Digimatic
• IP protection category: IP 67
• Package contains: battery, instruction manual, case

• High contrast digit display
• Locking screw above
• Lapped guideway
• Measuring surfaces made of steel
• Slide and beam made of hardened stainless steel
• Immediate measurements due to the Reference System
• Raised guideway for the protection of the scale
• Excellent resistance against dust, coolants and lubricants
• Dirt wipers are integrated in the slide

0-150mm/0-6″:

Measuring range mm 0 – 150 Measuring range inch 0 – 6″ Resolution mm/inch 0.01 / .0005″ Standard Factory standard Error limit (mm) 0.03mm Error limit inches .001″ Battery type CR 2032 (3V Lithium) Dimensions a 234 mm | b 100 mm |

0-300mm/0-12″:

Measuring range mm 0 – 300 Measuring range inch 0 – 12″ Resolution mm/inch 0.01 / .0005″ Standard Factory standard Error limit (mm) 0.04mm Error limit inches .0015″ Battery type CR 2032 (3V Lithium) Dimensions a 384 mm | b 150 mm |
