Mahr Marcal 18 EWR IP65 Digimatic Digital Caliper (with outside jaws): 0-300mm, 0-500mm

Description

Please select caliper size above.

• Digital workshop caliper MarCal 18 EWR
• Measuring range mm: 0 – 300 mm, 0-500mm
• Resolution mm/inch: 0.01 mm / 0.0005 inch
• Data interface: USB, Opto RS-232C, Digimatic
• IP protection category: IP 65
• Package contains: battery, instruction manual, case

• High contrast digit display
• Locking screw above
• Rounded measuring blades for inside measurements
• Slide and beam made of hardened stainless steel
• Immediate measurements due to the Reference System
• Raised guideway for the protection of the scale
• Excellent resistance against dust, coolants and lubricants
• Dirt wipers are integrated in the slide

0-300mm/0-12″:

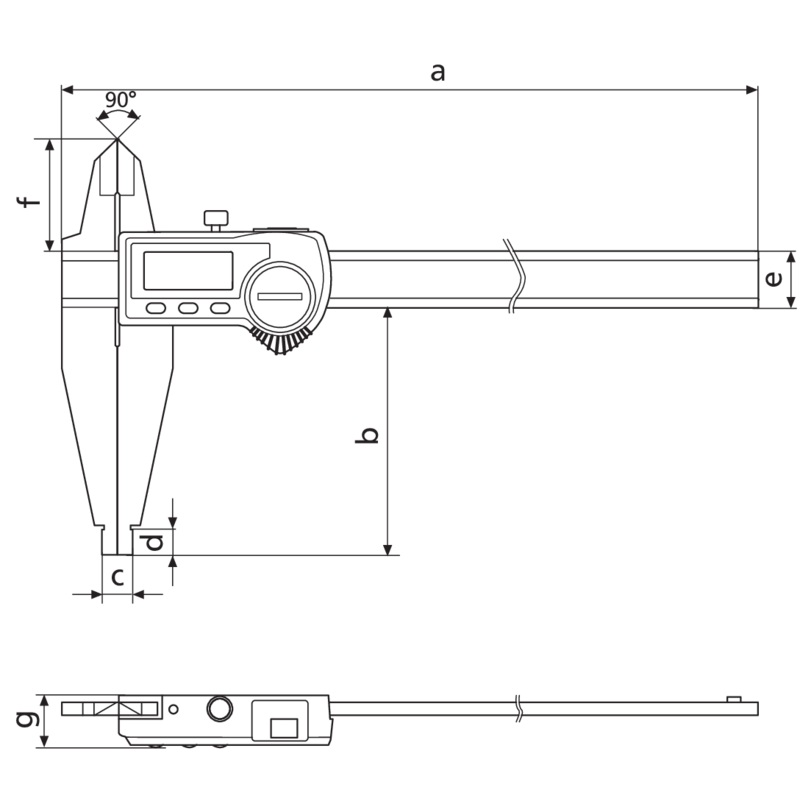

Measuring range mm 0 – 300 Measuring range inch 0 – 12″ Resolution mm/inch 0.01 / .0005″ Standard Factory standard Error limit (mm) 0.03mm Error limit inches .001″ Battery type CR 2032 (3V Lithium) Dimensions a 410 mm | b 90 mm | c 10 mm | d 10 mm | e 20 mm | f 40 mm |

0-500mm/0-20″:

Measuring range mm 0 – 500 Measuring range inch 0 – 20″ Resolution mm/inch 0.01 / .0005″ Standard Factory standard Error limit (mm) 0.04mm Error limit inches .0015″ Battery type CR 2032 (3V Lithium) Dimensions a 650 mm | b 150 mm | c 20 mm | d 20 mm | e 25 mm | f 55 mm |
