Mahr MarCal 16 FN Pocket Caliper 0-150mm, 0-200mm

Description

• Vernier and scale have a satin chrome finish for glare free reading
• Locking screw above
• Measuring surfaces made of steel
• Measuring blade for inside measurements
• Slide and beam made of hardened stainless steel
• Step measuring function
• Raised guideway for the protection of the scale

0-150mm:

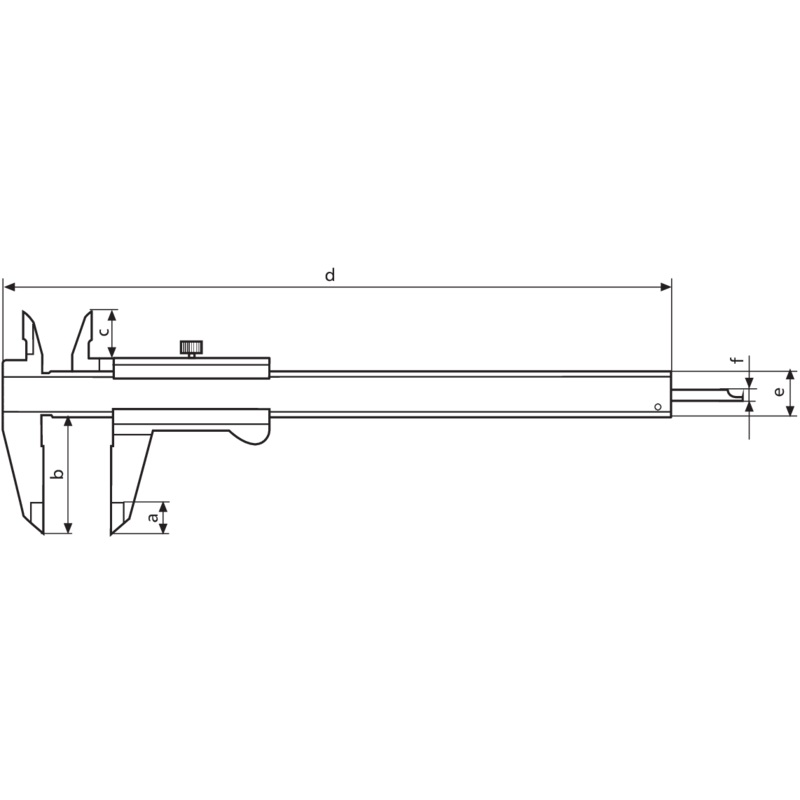

Measuring range mm 0 – 150 Measuring range inch 0 – 6″ Readings mm 0.05mm Vernier value inch 1/128″ Standard DIN 862 Error limit (mm) 0.05mm Error limit inches .002″ Depth Rod rectangular Dimensions a 10 mm | b 40 mm | c 16 mm | d 228 mm | e 16 mm | f 3.8 mm |

Please select caliper size.

0-200mm:

Measuring range mm 0 – 200 Measuring range inch 0 – 8″ Readings mm 0.05mm Vernier value inch 1/128″ Standard DIN 862 Error limit (mm) 0.05mm Error limit inches .002″ Depth Rod rectangular Dimensions a 14 mm | b 50 mm | c 19 mm | d 290 mm | e 17 mm | f 3.8 mm |
