Mahr Indicating Micrometers
Retraction of the moveable anvil and carbide-tipped measuring faces ensure maximum wear resistance Measuring spindle made of stainless steel hardened throughout and ground lockable For rapid measurement of the diameter of a cylindrical parts (e.g. shafts bolts and shanks)

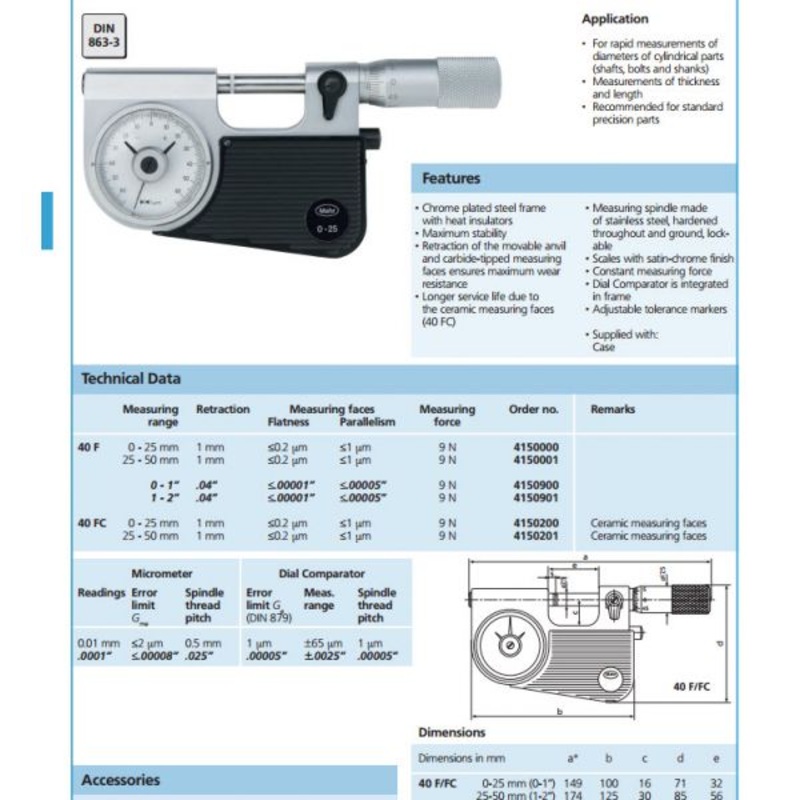

4150001 Mahr Micrometer W/ Dial Comparator: 25-50 mm
The Mahr 4150001 Micrometer W/ Dial Comparator has the following specifications:
- Measuring Range: 25-50mm
- Measuring Force: 9N
- Retraction: 1mm
- Measuring Faces Flatness: 0.2 m
- Measuring Faces Parallelism: 1 m
Applications:
- For rapid measurements of diameters of cylindrical parts (shafts, bolts and shanks)
- Measurements of thickness and length
- Recommended for standard precision parts
Features:
- Chrome plated steel frame with heat insulators
- Maximum stability
- Retraction of the movable anvil and carbide-tipped measuring faces ensures maximum wear resistance
- Longer service life due to the ceramic measuring faces (40 FC)
- Measuring spindle made of stainless steel, hardened throughout and ground, lockable
- Scales with satin-chrome finish
- Constant measuring force
- Dial Comparator is integrated in frame
- Adjustable tolerance markers
- Supplied with: Case
