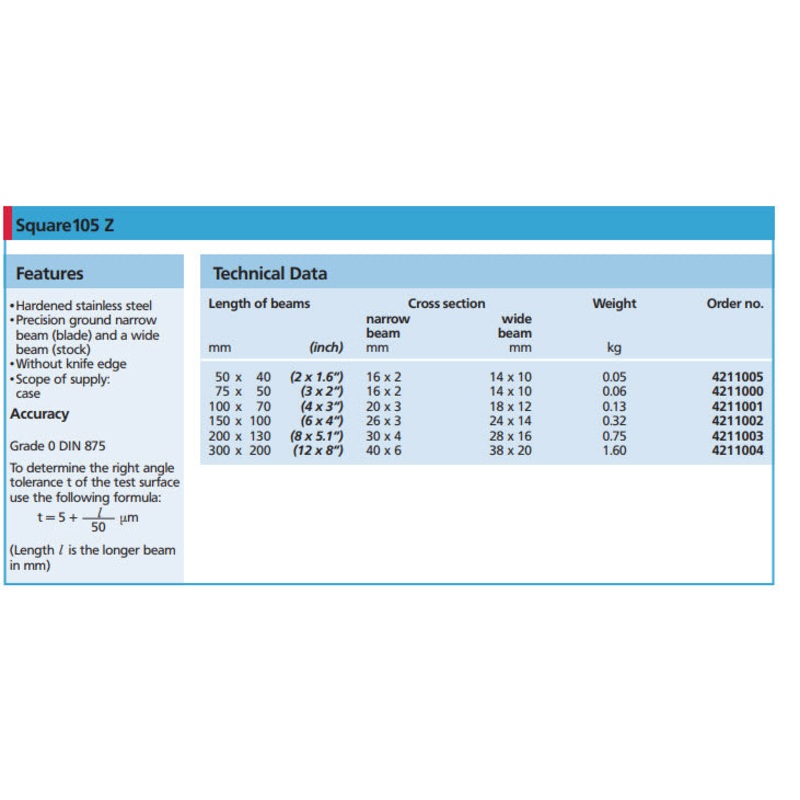

MAHR FEDERAL Model# 4211002, 150X100MM 105Z HARDENED SQUARE
Hardened stainless steel
Precision ground narrow
beam (blade) and a wide
beam (stock)
Without knife edge
Scope of supply:
case
Accuracy
Grade 0 DIN 875
To determine the right angle
tolerance t of the test surface
use the following formula:
t = 5 + m l
50
(Length l is the longer beam
in mm)
