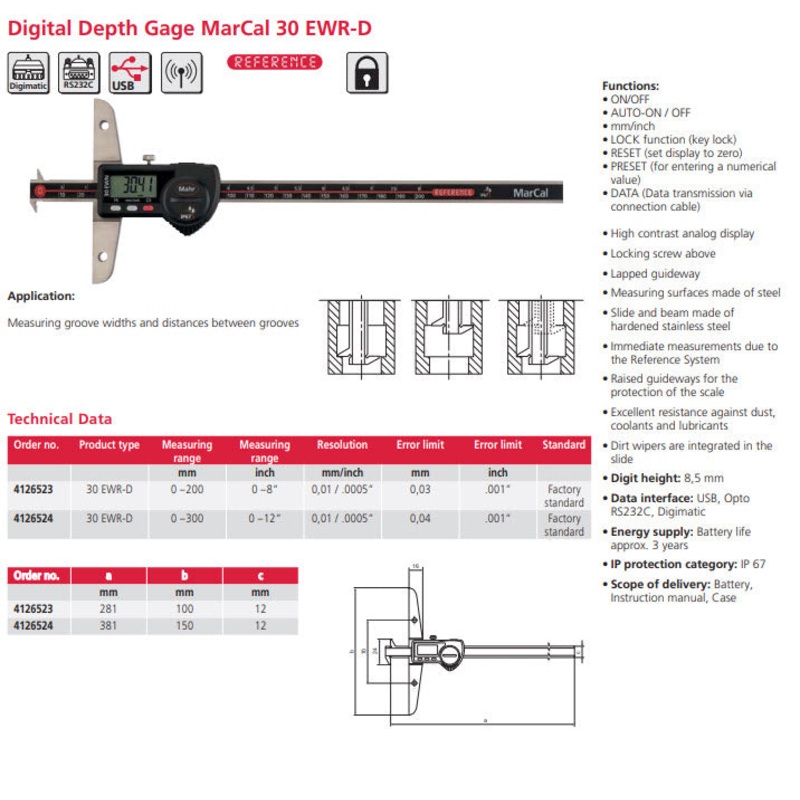

Description
Functions:
ON/OFF
AUTO-ON / OFF
mm/inch
LOCK function (key lock)
RESET (set display to zero)
PRESET (for entering a numerical value)
DATA (Data transmission via connection cable)
High contrast analogue display
Locking screw above
Lapped guideway
Measuring surfaces made of steel
Slide and beam made of hardened stainless steel
Immediate measurements due to the Reference System
Raised guideways for the protection of the scale
Excellent resistance against dust, coolants and lubricants
Dirt wipers are integrated in the slide
Digit height: 8,5 mm
Data interface: USB, Opto RS232C, Digimatic
Energy supply: Battery life approx. 3 years
IP protection category: IP 67
Scope of delivery: Battery, Instruction manual, Case
