Description

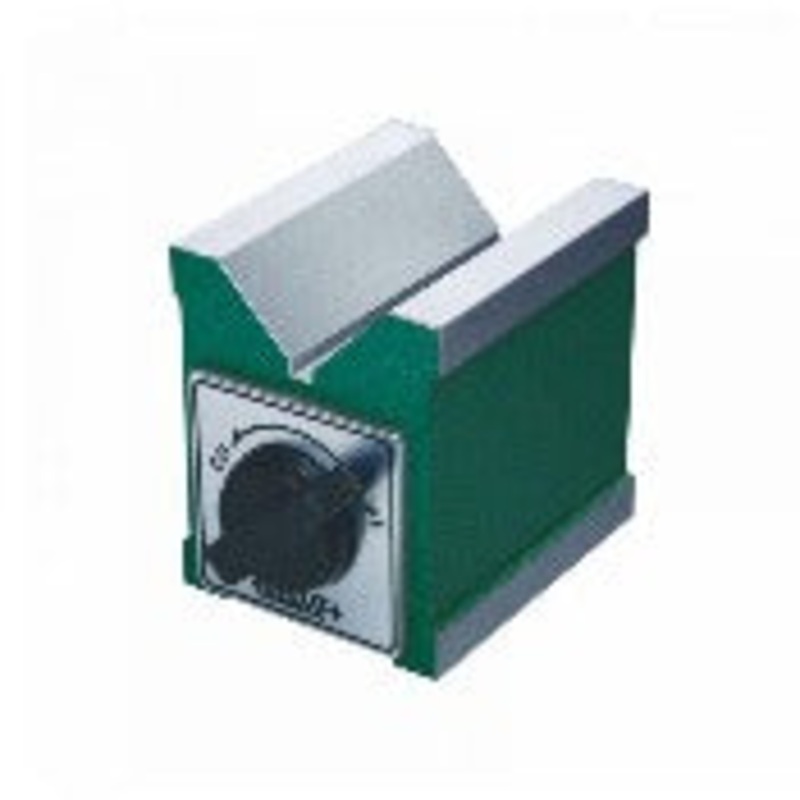

The Insize 6801 Magnetic V-Block can clamp cylindrical workpieces for precision inspection and machining, can be mounted vertical or horizontal. With V-grooves on both sides you have a clamping range upto 67mm.
- Parallelism of V-groove to top, bottom, left and right sides 0.01mm.
- Squareness of V-groove to back side 0.01mm.
- V groove on the top for large shafts.
- V groove on the bottom for small shafts.
- Supplied in single pieces.
- Not hardened.
- Magnetic force upto 96kgf.
- Not suitable for cast iron surface plates.
