Description

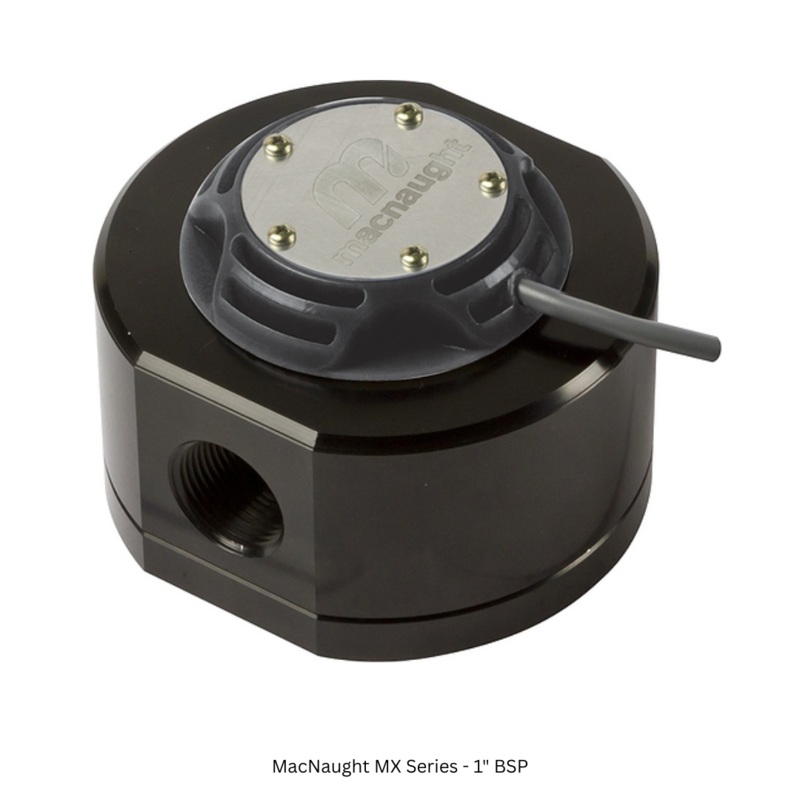

Our MacNaught MX-Series Oval Gear Positive Displacement Flowmeters are the ideal Flowmeter for measuring viscous fluids such as Oils and Fuels. These Flowmeters provide good accuracy and a visual display of both the Rate-of-Flow, as well as a Resettable Totaliser.
MacNaught MX Flowmeters are proudly Australian Made and can be supplied in various sizes to suit your expected flow rate measurement range.
These units have a Blind Non-Indicating Pulse Output only.See our Battery Powered or DC Powered Digital Display Models if a unit with Display is required.
We also have various Electrical Connections, as well as Hazardous Area (Ex-Rated) versions for these as well
- Blind Non-Indicating Dual Pulse Outputs (3-Wire Hall Effect & 2-Wire Reed)
- Aluminium (6061) construction
- FKM (Viton) seals; PPS (Ryton) Rotors;
- Select size based on expected flow rate
- BSP Female Threaded Ports (NPT or Flanged options on request)
- Accuracy of 0.5% of reading
- Exceptional repeatability of 0.03%
- Temperature up to 80C / 176F
- 1 Point factory calibration as standard, with additional points upon request
