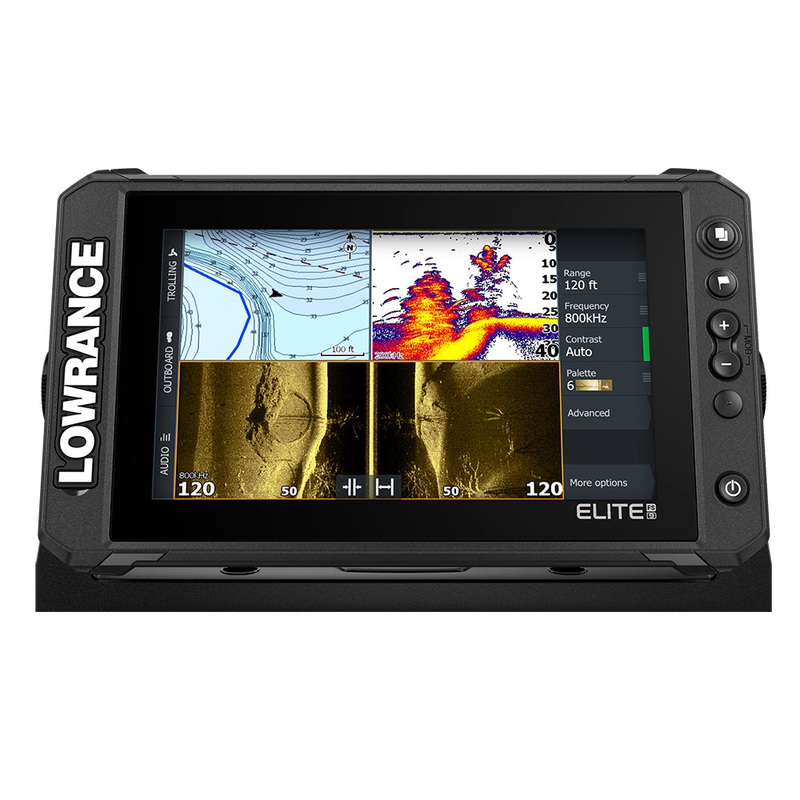

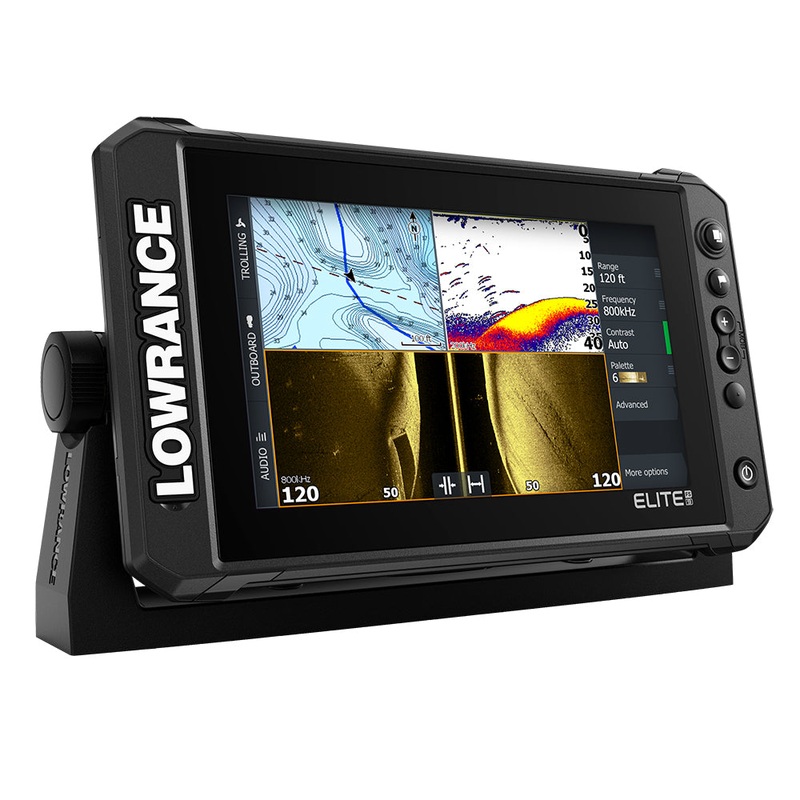

Lowrance Elite FS 9 Chartplotter/Fishfinder – No Transducer [000-15707-001]

Description

Elite FS 9 Chartplotter/Fishfinder – No Transducer

The Elite Fishing System (FS) combines the power of Lowrances proven and newest fishfinding tools with a more affordable display thats easier to use and install. From ActiveTarget live sonar and extreme high-resolution Active Imaging with Lowrance CHIRP sonar, SideScan and DownScan Imaging to preloaded C-MAP Contour+ Fishing Maps, Elite FS gives you all the tools you need to find and catch more fish.

Key Features

• 9″ Display
• ActiveTarget Live Sonar ready with optional ActiveTarget live sonar and transducer (000-15593-001)
• Transducer Required
• FishReveal
• Preloaded C-MAP Contour+ with 1-foot contours on 8,900 lakes
• Other mapping options including C-MAP, Navionics and more
• C-MAP Easy Routing, Navionics Autorouting capability
• C-MAP Genesis Live onscreen mapping
• High-resolution multi-touch touchscreen
• Integrated wireless, NMEA 2000 and Ethernet connectivity
• Full touchscreen control of Power Pole anchors and Ghost Trolling Motor

C-Map Contour+ Mapping Preloaded

You will spend more time trying to catch fish and less time trying to find them with the high-resolution detail of the C-MAP Contour+ charts built into Elite FS displays. From finding key fishing areas, like ledges, drop-offs and ditches to navigating with precision to fish-holding areas, you will have more success on the water with high-resolution 1-foot contours on 8,900 lakes.

Key Features

• Custom depth shading
• Easy routing, Lowrance presentation for icons
• High-Resolution, Bathymetric 1-foot contours on 8,900 U.S. lakes
• Standard navigation data
• Fishing POIs

Specifications:

• Transducer Included: No
• Touchscreen: Yes
• Screen Size: 9″
• Cartography Brand: Navionics/C-Map/Lowrance
• Box Dimensions: 6″H x 14″W x 16″L WT: 7.55 lbs
• UPC: 9420064117093

Quick Guide (pdf)
Owner’s Manual (pdf)
