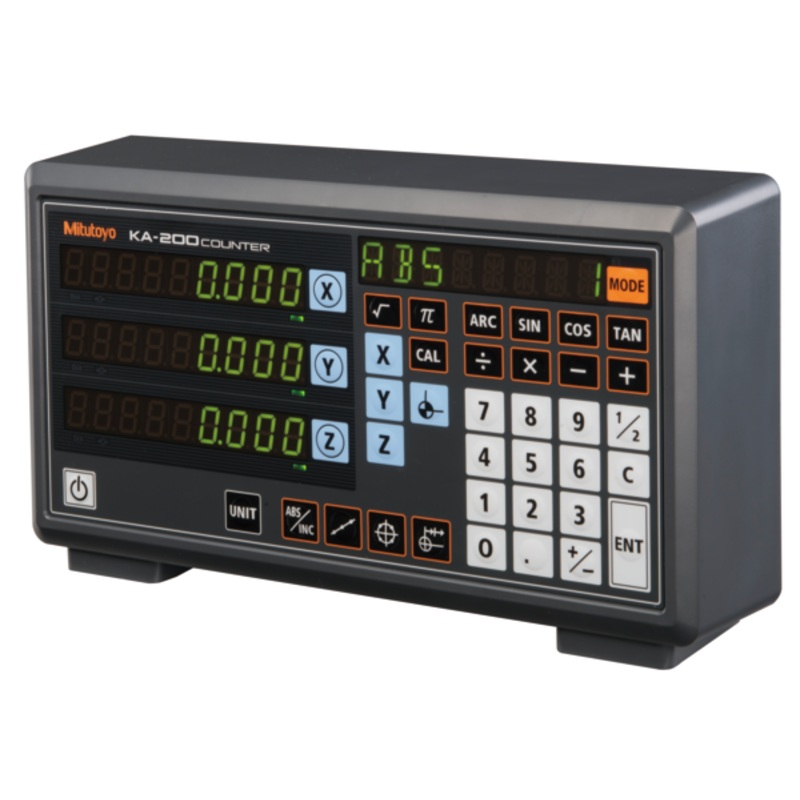

Name: Linear Scale Counter KA-213 174-185D
SKU: TEEHnbADZoR6S
Price: 145.00 USD
Availability: InStock

Description

his counter displays length indication transmitted from a linear scale.
The KA-Counter offers you the following benefits:

Can be used as a standard counter or a lathe counter by modifying parameters.
Downsizing, weight saving and multiple function have been realized.
Sub display for easy operation.
Text data can be output using the optional USB interface.
The optional external interface RS-232C enables connection to a PC and a printer.

Features

Axes: 3

Display: 7-segment, 8-digit + sign +
8-character alphabet LED display

Resolution: With AT100 Series:
0.05 – 0.0001 mm
With AT715:
0.01 – 0.001 mm

Dimensions (WxDxH): 260 x 167 x 80mm

Diameter display: Yes

Operation temperature: 0C to 45C

1/2 calculation: Yes

mm/inch conversion: Yes

Bolt-hole circle machining: Yes

Scale reference points: Yes

Linearity error compensation: Yes

Zero approach function (Incremental mode): Yes

Mass: 1.33 kg

Addition of 2-scale data: Yes

Coordinate system switching: Yes

Error message: Yes

Lower digit blanking out: Yes

Macro functions: Rectangular drilling and round milling newly added

Main features: Feed speed display; taper machining function; tool data; multipoint compensation; scale check function; calculation function

Measurement direction setting: Yes

Memory backup: Yes

Output (optional): RS-232C / USB

Pitch machinig: Yes

Resolution setting: Yes

Smoothing: Yes
