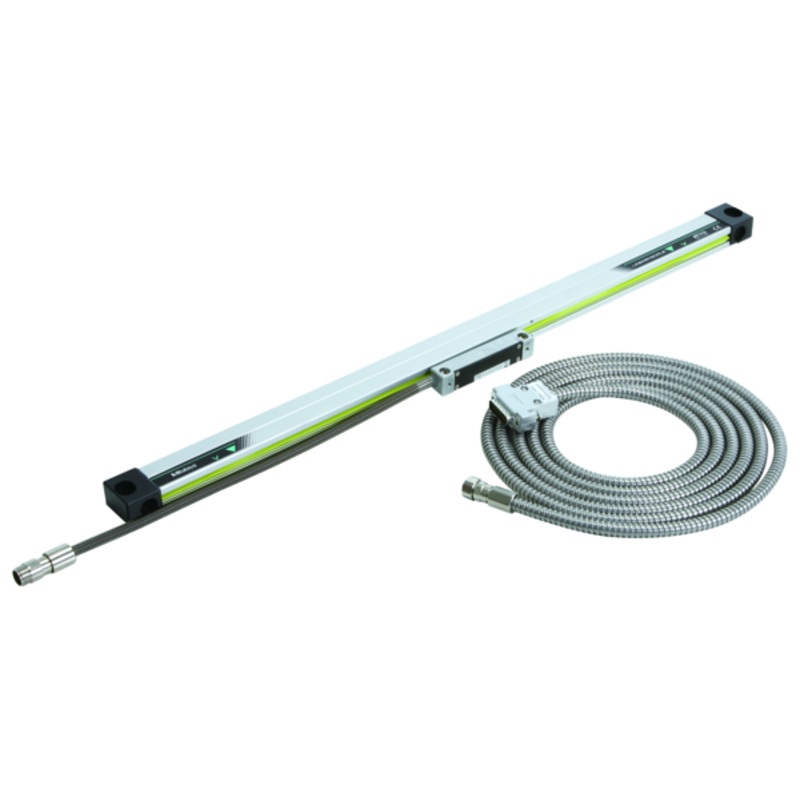

Linear Scale AT113F 450mm 539-208-40

Original price was: $676.40.Current price is: $146.00.

SKU: TEEtzwlx7kLax Category:

Description

These linear scales are built for limited installation space

  • Glass scale – Zero not coded
  • Expansion factor (8 1)x 10-6/K-1
  • An armoured inox signal cable is used to connect the DRO counter

Specification

Accuracy: High-accuracy type
(3+3L/1000) m
L = Effective range (mm)

Output waveform: Two 90 phase-shifted sinusoidal signals

Max. drive speed: 120 m/min

Signal period: 20 m

Scale reference points: 50 mm

Dust/water protection level: IP53

Cable length: 3.5 m

Effective Length: 450 mm

Mass: 1.14 kg
