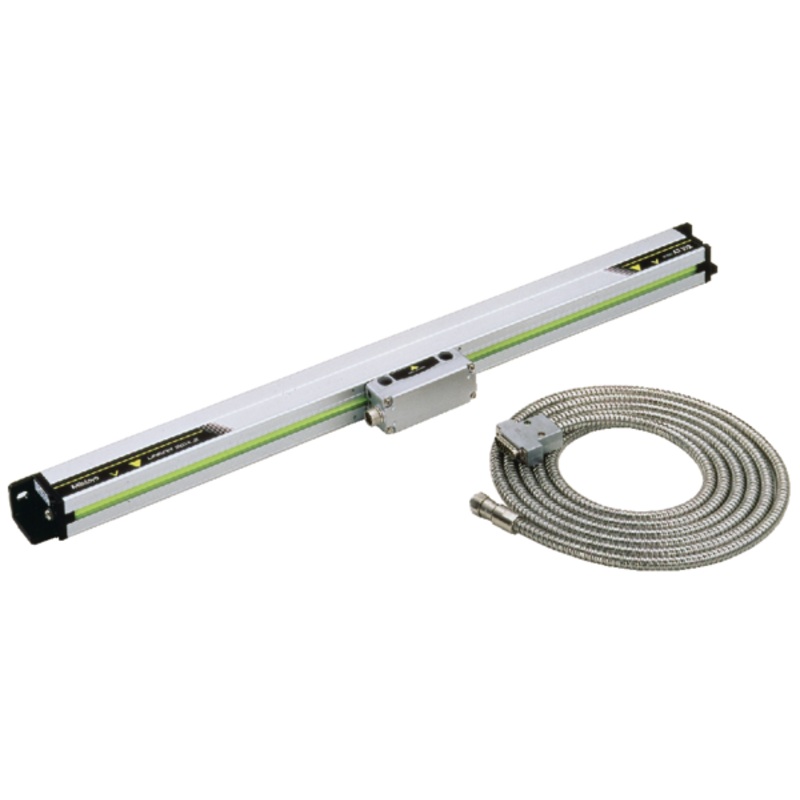

Linear Scale AT103 2200mm 539-137-30

Original price was: $1,441.80.Current price is: $149.00.

SKU: TEEhsrNVVYeks Category:

Description

These linear scales offer : Sturdy construction-high resistance to vibration-protection rating are similar in upright and reclining position

  • The innovative rubber lips keep out contaminants when you are using the scale in a machine shop.
  • An armoured signal cable is used to connect the scale unit to the DRO counter, so you can operate it safely even in hostile environments.
  • The signal cable outlet can be positioned on either side of the slider so you can connect the signal cable from either direction.

Specification

Accuracy: 100 to 3000 mm
(5+5L/1000) m
3250 to 6000 mm
(5+8L/1000) m
L = Effective range (mm)

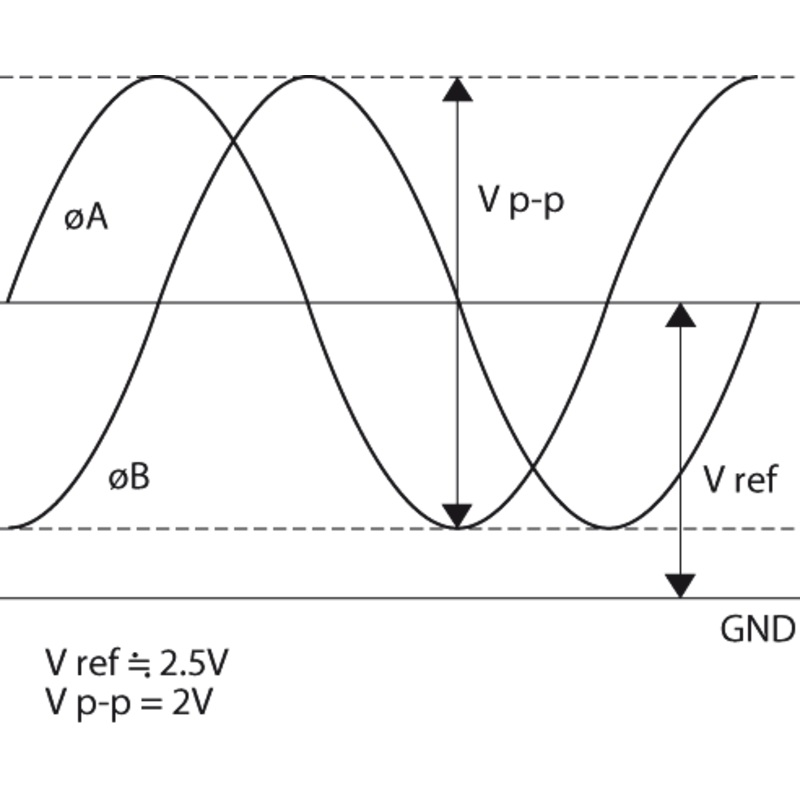

Output waveform: Two 90 phase-shifted sinusoidal signals

Max. drive speed: 120 m/min.

Signal period: 20 m

Scale reference points: every 50 mm

Dust/water protection level: IP53

Cable length: 5 m

Effective Length: 2,200 mm

Mass: 6.4 kg
