Linear Gauge LG100-110 50 mm 542-196 .001mm resolution

Original price was: $749.00.Current price is: $145.00.

SKU: TEEoAjcJl5Xgw Category:

Description

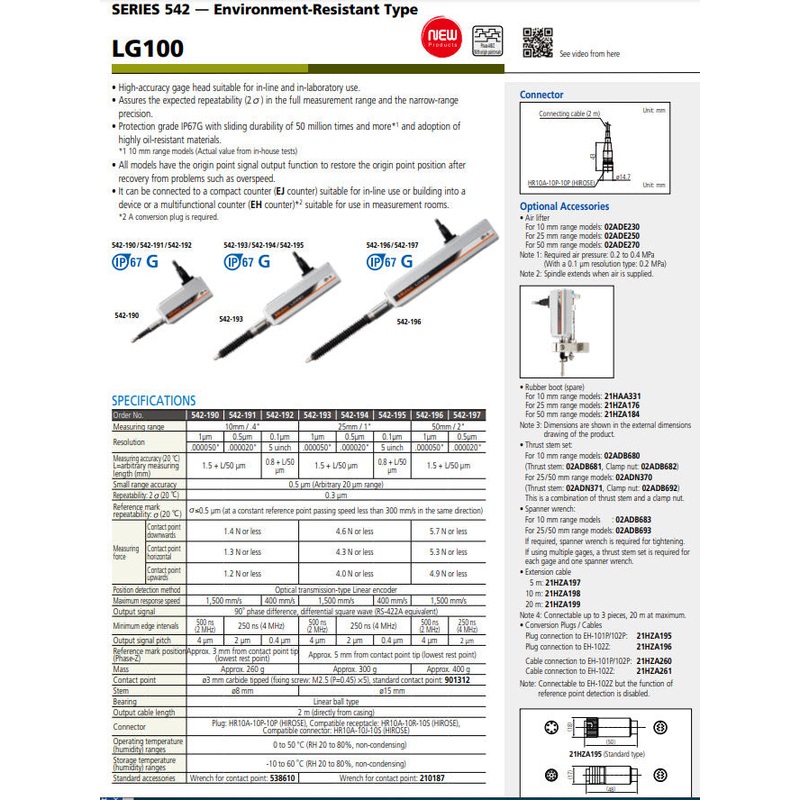

The LG100 is a very robust and economical linear gauge for in-line use and automatic machines, in combination with the EJ Counter. EH-counters can be used as well.

  • The advanced construction of the plunger guidance assembly makes it very resistant to external shocks and vibrations.
  • Its differential square-wave signal output allows for a wide range of applications.
  • Long-lasting due to linear ball-bearings in the spindle unit.
  • Repeatability of 0.3 m.
  • Narrow range accuracy: 0.5 m (20 m range).
  • Operation temperature range: 0 – 50C.

Features

Range: 0 – 50 mm

Accuracy: (1.5+L/50) m
L=measured length in mm

Measuring force: 5.7 N with spindle down,
5.3 N with spindle horizontal,
4.9 N with spindle upwards

Resolution: 0.001 mm

Stem : 15 mm

Cable length: 2 m

Mass: 400 g

Scale: Photoelectric linear encoder

Max. response speed: 1500 mm/s

Contact point: 3 mm carbide ball, thread: M 2.5 x 0.45

Output signal: 90 phase difference, differential square wave (RS-422 equivalent)

Environmental conditions: 0C to 50C (20% to 80% rel. humidity, no condensation) C

Bearing type: Linear ball bearing

Signal pitch: 4 m

Power supply: DC 5 V 0.2 V ripple voltage200 mVpp max

Minimum edge distance: 500 ns (1 m type),
250 ns (0.5/0.1 m type)

Scale reference point: 3 mm from the lowest rest point
(10 mm type),
5mm from the lowest rest point
(25/50 mm type)
