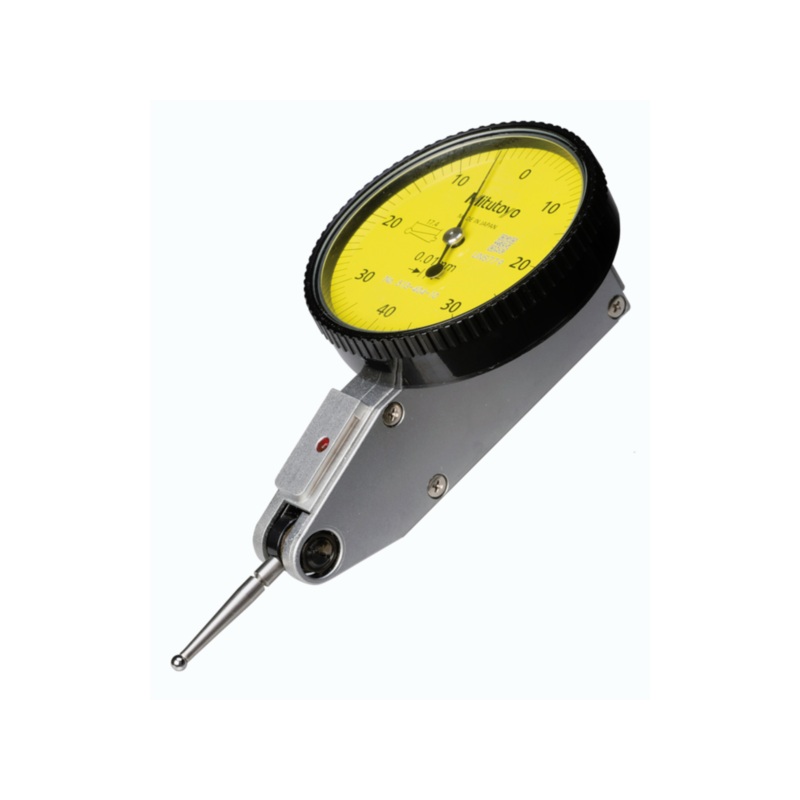

Lever-Type Dial Indicator 0.8mm 0.01mm 40mm 513-404-10T

Original price was: $114.98.Current price is: $57.49.

SKU: 513-404-10T Category:

Description

This is a dial test indicator (lever type) set which offers you the following benefits:

  • Drastically enhanced durability, sensitivity and visibility
  • Glare-free flat crystal face allows easy reading of graduations.
  • O-ring seal on the bezel has the effect of providing smooth rotation and prevents dust and oil from penetrating through to the dial face.
  • Multi-layer coatings on the crystal
  • Set Consists of:
  • 8mm & 4mm Stem
  • Swivel clamp fo 4mm & 8mm dovetail stem
  • Stylus 1mm diameter carbide point
  • Stylus 3mm diameter carbide point
  • 100mm Holding Bar

Specification

Digital/Analog: Analog

Inch-Metric: Metric

Type: Full set

Delivered: In a box with stem 8/4 mm, stylus 1/2/3 mm, swivel clamp / holding bar

Range: 0.8 mm

Dial reading: 0-40-0

Graduation: 0.01 mm

MPE any 10 scale divisions: 5 m

MPE any 1/2
revolution:
6 m

MPE measuring range: 8 m

H MPE
(Hysteresis):
3 m

R MPE
(Repeatability):
3 m

Measuring force: 0.01-0.3 N

Carbide stylus tip 2 mm No.: 103006

Mass: 45 g

Contact point: Thread M 1.7 x 0.35
