Description
Lever-Type Dial Indicator 0.5mm 0.01mm 40mm 513-478-10E
Specification
This is a Dial Test Indicator (Lever Type) which offers you the following benefits:
- Drastically enhanced durability, sensitivity, and visibility.

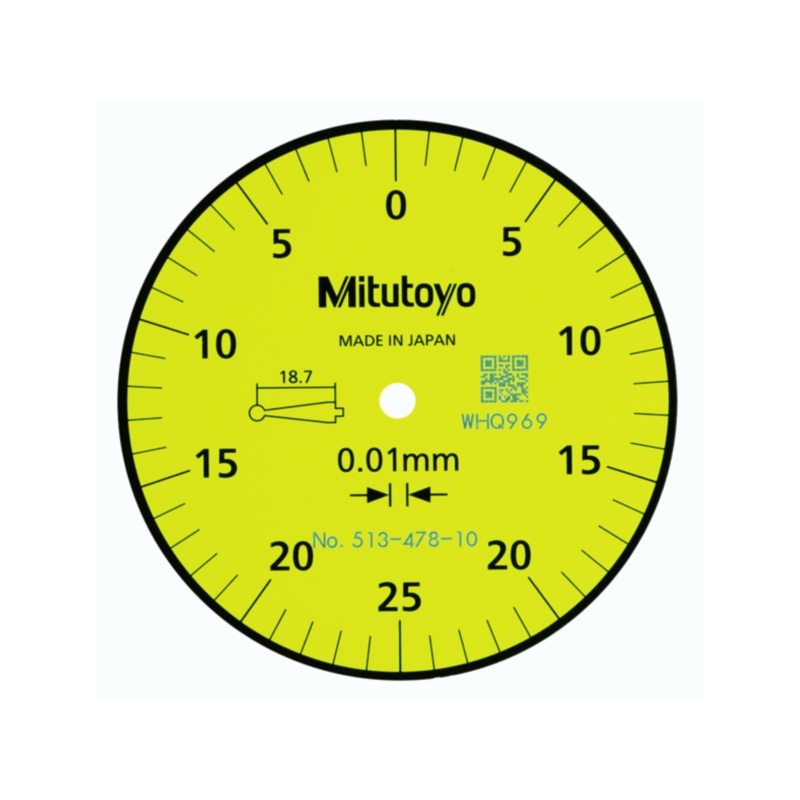

- Glare-free flat crystal face allows easy reading of graduations.
- O-ring seal on the bezel has the effect of providing smooth rotation and prevents dust and oil from penetrating through to the dial face.
- The stylus length is on the dial face to reorder a replacement
- Multi-layer coatings on the crystal.
Specification
- Digital/Analog: Analog
- Inch-Metric: Metric
- Type: Basic set – Ruby Stylus
- Range: 0.5 mm
- Graduation: 0.01 mm
- Graduation: 0.01
- Scale: 0-25-0
- MPE any 10 scale divisions: 5 m
- MPE measuring range: 5 m
- H MPE (Hysteresis): 3 m
- R MPE (Repeatability): 3 m
- Ruby stylus tip 2 mm No.: 21CZA210
- Mass: 45 g
- Contact point: Thread M 1.7 x 0.35
- D : 40 mm
