Description

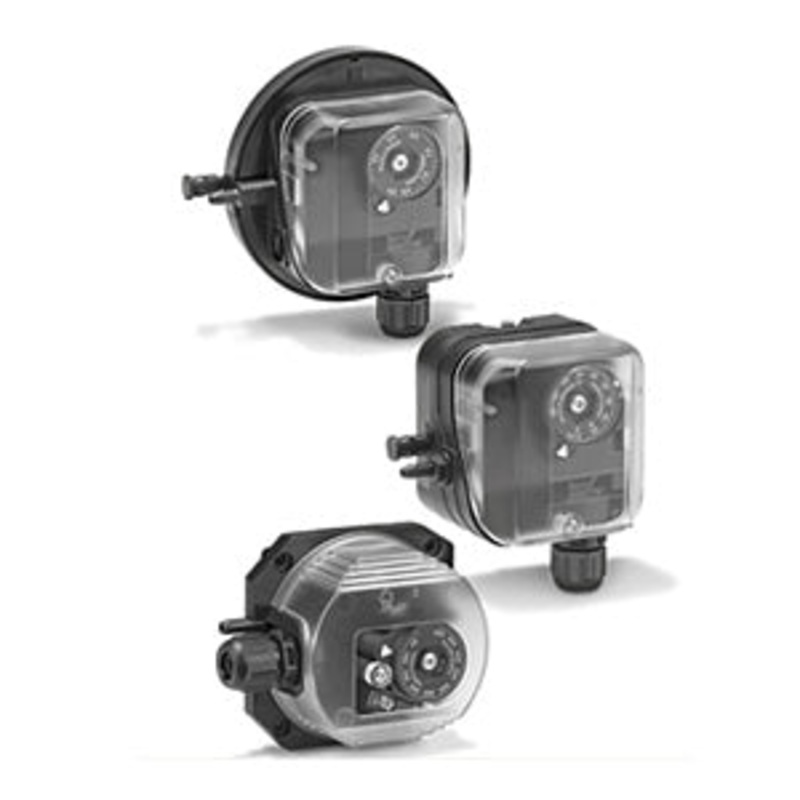

DL PRESSURE SWITCHES are used for positive, vacuum or differential pressure proving switches for air, flue gas and other non-aggressive gases. NOT SUITABLE FOR FUEL GASES.
TECHNICAL DATA:
APPROVALS: UL, ULc, CE, FM, EAC
CONNECTIONS: 1/4″ Tube / NPT Connection, 1/2″ NPT Electrical Cable Gland
RATINGS:
VOLTAGE 120VAC; 50/60 Hz
ENCLOSURE IP54, IP65, IEC 60529
PRESSURE Max. Inlet Pressure 8.5 PSIG (600 mbar) for UL, ULc, FM, CE
TEMPERATURE -40 F to140 F (-40 C to 60 C)
