KICKER L7S 15 Square Subwoofer – 4-Ohm, 1000W [44L7S154]

Description

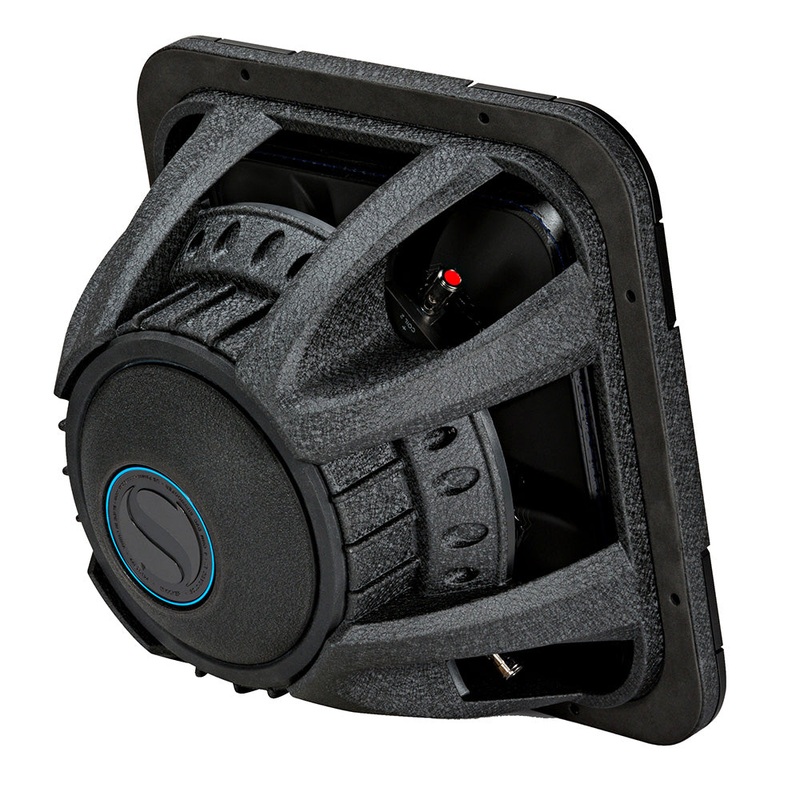

L7S 15″ Square Subwoofer – 4-Ohm, 1000W

The KICKER Solo-Baric L7S boasts massive power handling and more cone area than any circular sub. You move more air, so you get more bass.

The heavy-duty motor structure includes a large-diameter spider for less flex, longer life, and superior accuracy. High-temp voice coil wire winding completes a powerful Comp motor that makes the most of every watt you give it.

Features:

• Dual Four-Ohm Voice Coils
• Injection-Molded Polypropylene Cone
• Patented Corner Ribs Minimize Distortion
• SoloKon 360-Degree Back Bracing
• Ribbed Santoprene Surround With Blue Surround Stitching
• UniPlate Back Plate And Pole Piece, Plus Perimeter Venting For Excellent Thermal Management
• Thick Tinsel Leads
• Large Ceramic Magnet
• Cast Aluminum Basket
• Satin-nickel plated, Spring-Loaded Speaker Terminals

Technical Specifications:

• Size – 15″
• Impedance – 4 DVC
• Power (Watts RMS) – 1000W
• Peak Power (Watts) – 2000W
• Frequency Response – 18-100Hz

Specifications:

• Cutout Size: 13-3/4″
• Mounting Style: Flush
• QTY: Single
• Watts Max: 2000w
• Watts RMS: 1000w
• Size: 15″

Quick Guide (pdf)
Owner’s Manual (pdf)
