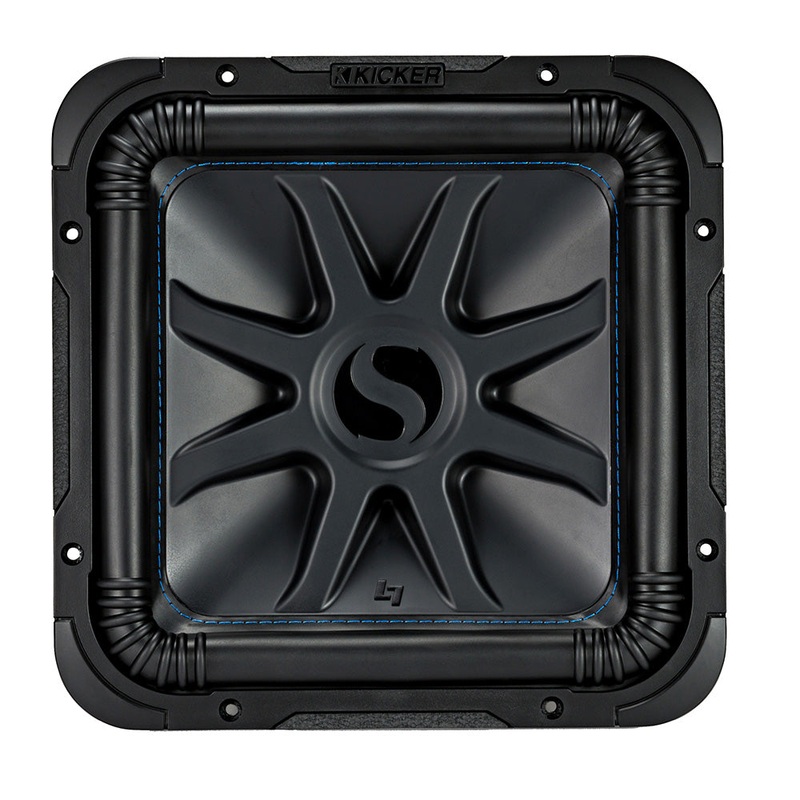

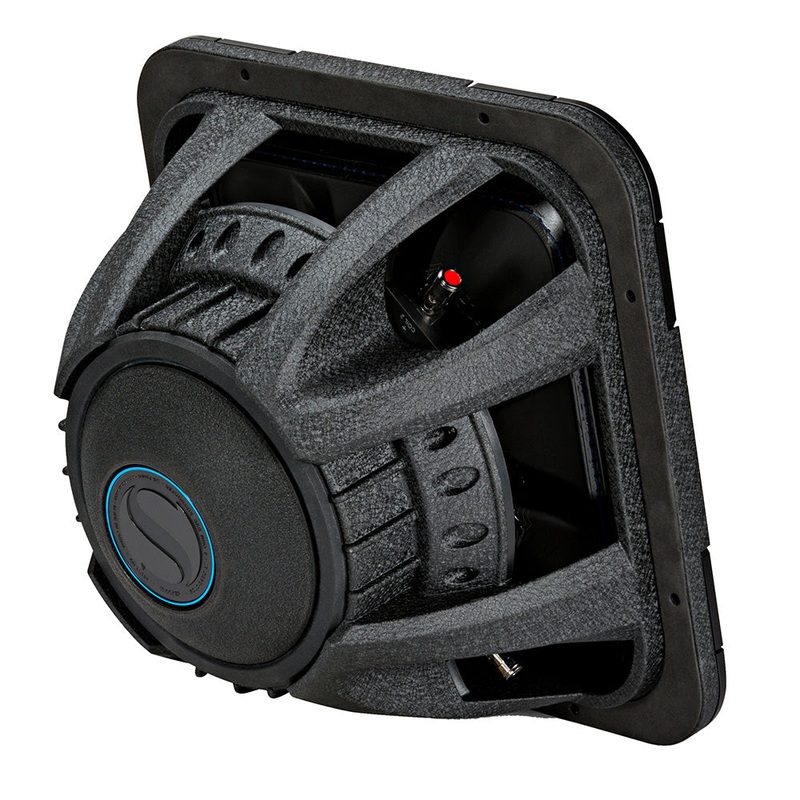

KICKER L7S 12 Square Subwoofer – 2-Ohm, 750W [44L7S122]

Description

L7S 12″ Square Subwoofer – 2-Ohm, 750W

The KICKER Solo-Baric L7S has a unique cone structure and heat dissipation system for outstanding power handling and unsurpassed clarity.

The Solo-Baric L7’s highly-engineered motor structure and square sub-design promise dependability when pushed to the limit, while dual voice coils with high-temp copper windings easily handle intense heat and power levels for clean, clear bass anytime.

Features:

• Dual Two-Ohm Voice Coils
• Injection-Molded Polypropylene Cone
• Patented Corner Ribs Minimize Distortion
• SoloKon 360-Degree Back Bracing
• Ribbed Santoprene Surround With Blue Surround Stitching
• UniPlate Back Plate And Pole Piece, Plus Perimeter Venting For Excellent Thermal Management
• Thick Tinsel Leads
• Large Ceramic Magnet
• Cast Aluminum Basket
• Satin-nickel plated, Spring-Loaded Speaker Terminals

Technical Specifications:

• Size – 12″
• Impedance – 2 DVC
• Power (Watts RMS) – 750W
• Peak Power (Watts) – 1500W
• Frequency Response – 20-100Hz

Specifications:

• Cutout Size: 11-1/16″
• Mounting Style: Flush
• QTY: Single
• Watts Max: 1500w
• Watts RMS: 750w
• Size: 12″
