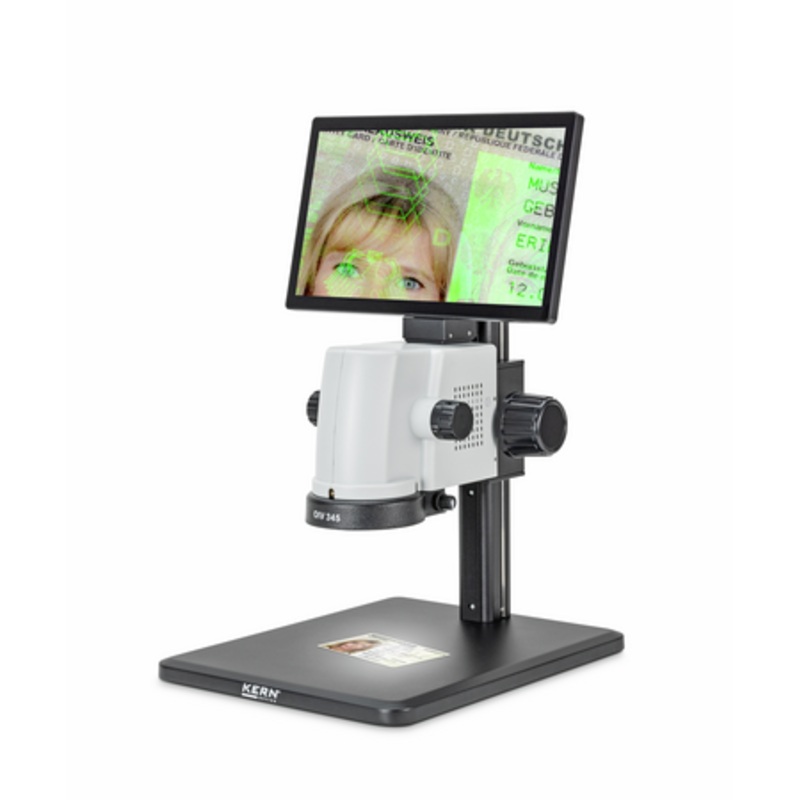

Kern Video microscope OIV 345, Zoom 0.7 – 4.5X, Camera 5MP, Illumination 3W LED Ring, Output HDMI (60FPS)/USB

Description

Description

• The KERNOIV 345 is a video microscope which has been constructed to optimise digital stereo microscopy. Our well-conceived, comprehensive solution with axial optical unit enables immediate, simple display of your samples on the screen
• The LED incident illumination unit (ring) included as standard guarantees the very best illumination of your sample
• Combined with the large working surface, recording objects on the screen is ideally suited for monitoring, analysis and documentation in industrial environments
• The excellent optical unit enables continuous sharp image tracking across the entire zoom range from 0,7 x – 4,5 x
• The powerful 5.0 megapixel camera of the microscope without eyepiece has a high level of colour reproduction and offers smooth live monitoring of your samples using the HD monitor
• The high-quality display made from toughened glass is easy to clean due to the absence of edges
• The intuitive software and wireless USB mouse, both included with delivery, make it possible for you to easily process your results digitally and store them
• Using an HDMI interface it is possible to connect an additional monitor and in this way you can observe two devices operated in parallel in real time
• The image can be viewed on the PC using a USB connection. The software required for this also offers the option of carrying out measurements. It is available for download
• A special feature of this microscope range are the zoom wheels with integrated click stop. These offer precise selection of magnification levels and support the user when calibrating the documentation functions in the software

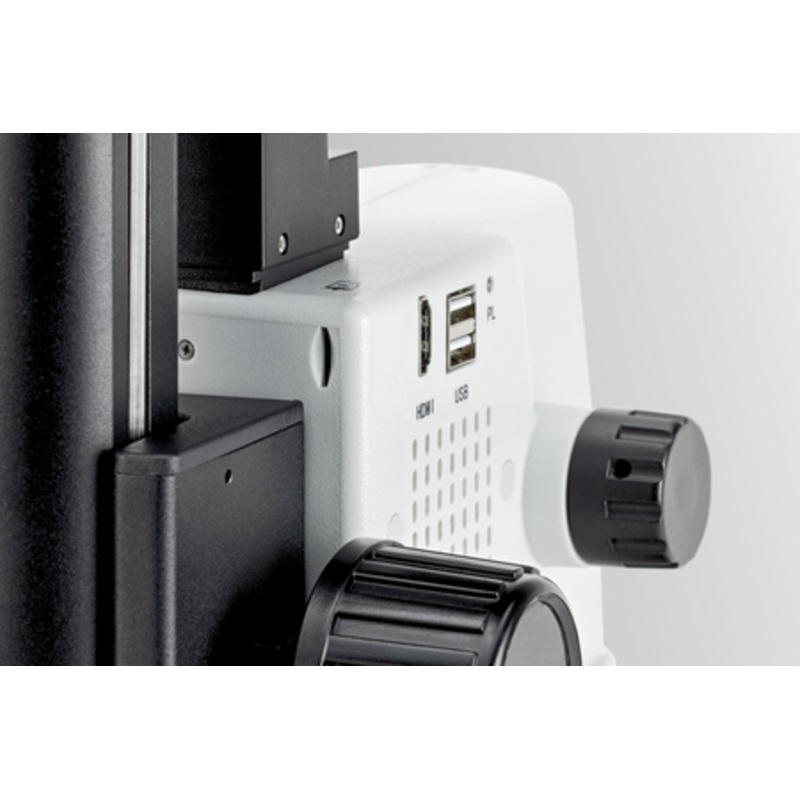

• The video microscope has one HDMI and two USB 2.0 interfaces as well as a micro SD card slot
• A protective dust cover, a USB stick (32 GB), a wireless USB mouse as well as multi-lingual user instructions are included in the delivery
• Menu languages: DE, EN, FR, IT, RU, JA, ZH

Technical Data

Optical system Axial Tube type Display Magnification ratio 6,4:1 Zoom [Min] 0,7 x Zoom [Max] 4,5 x Illuminance Reflected light Illumination intensity incident light 3 W Illumination type incident light LED Focusing mechanism coarse drive Display type LCD Display screen size 12″ Display resolution 19201080 HD Camera – Sensor type Sony CMOS Camera – Sensor size 1/2,8″ Camera – Resolution 5 MP Camera – Framerate 60 fps Interfaces USB 2.0, HDMI, MicroSD card slot Working distance 100 mm Sample height [Max] 110 mm Stand type mechanical Dimension (WDH) 320260450 mm GTIN/EAN number 4045761478985
