KERN Ultrasonic Thickness Gauge external TN 80-0.01US Material thickness pulse-echo [Max] (mm) 80 mm

Description

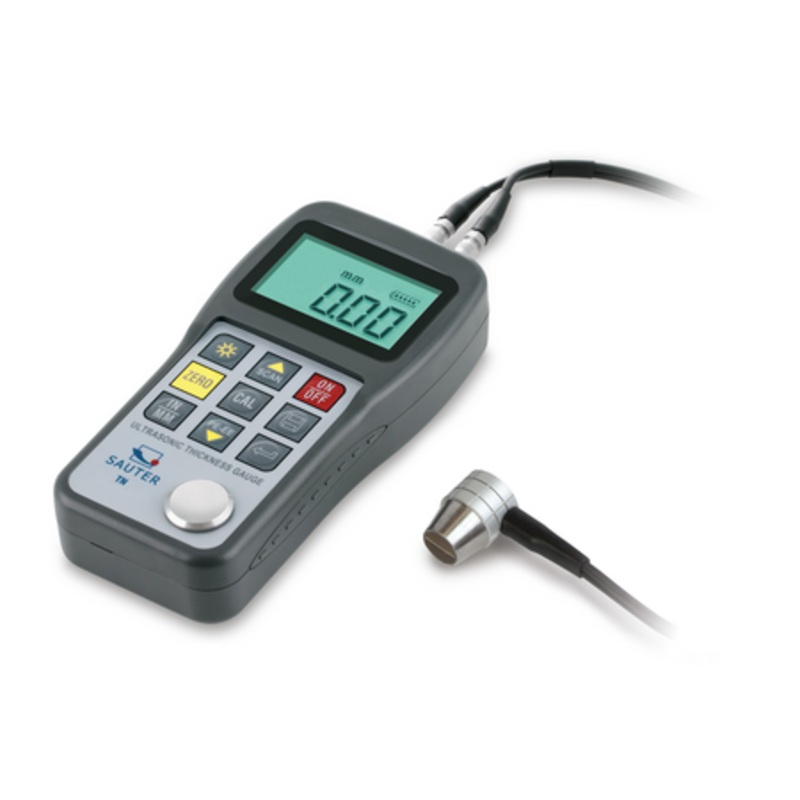

• External measuring head
• Data interfaceUSB standard
• Scan mode (10 measurements per sec.) or single point measuring mode possible
• Internalmemoryfor up to 20 files (with up to 100} values per file)
• Selectable measuring units: mm inch
• Scope of delivery: Operating instructions, batteries, external measuring head ( 6 mm) and ultrasound contact gel

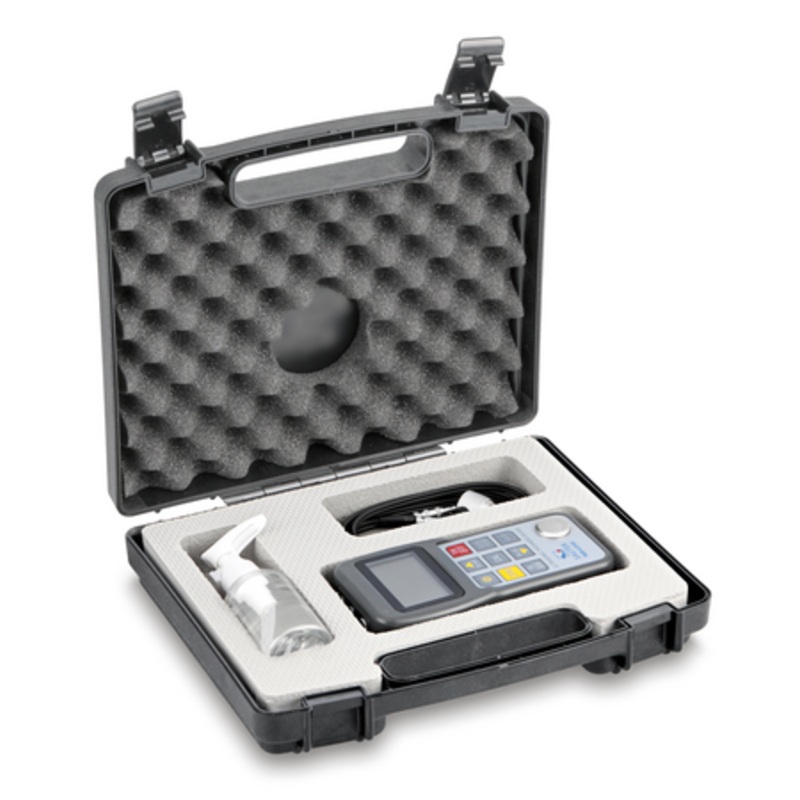

• Delivered in a robust carrying case

Technical Data

Material thickness pulse-echo [Max] (mm) 80 mm Material thickness pulse-echo [Min] (mm) 0,75 mm Measuring range pulse-echo 0,75 mm 80 mm Readability material thickness [d] (mm) 0,01 mm Tolerance (% of [Max]) 0,5% Units mm, inch Speed of sound [Max] (m/s) 9999 m/s Speed of sound [Min] (m/s) 1000 m/s Speed of sound 1000 m/s 9999 m/s Measuring head measuring frequency 7 MHz Battery 21.5 V AA Material housing plastic Dimensions completely mounted (WDH) 1507432 mm Interfaces USB-Device Cable length 0,9 m
