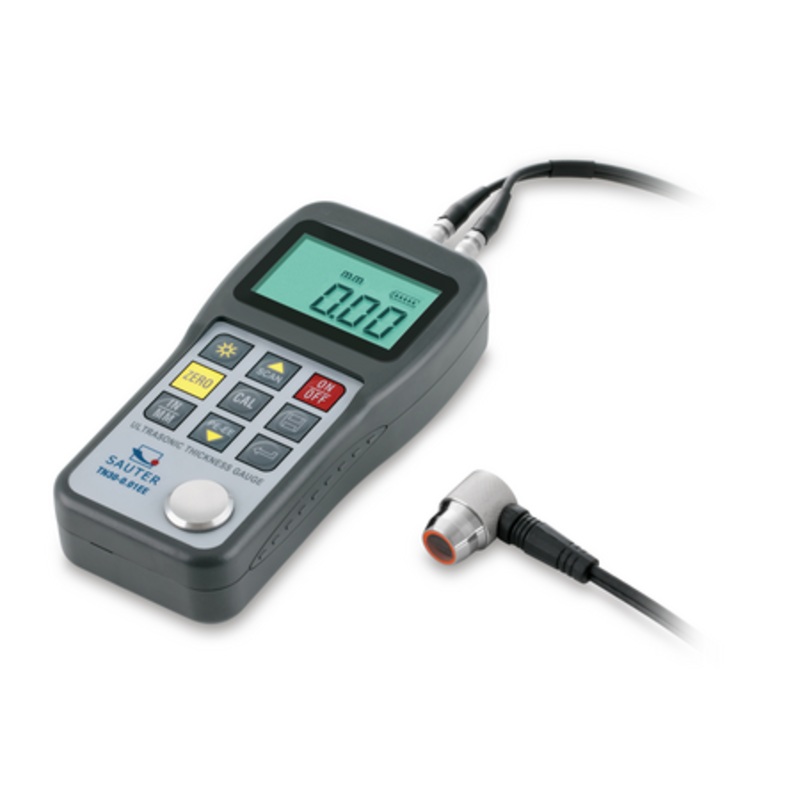

KERN Ultrasonic Thickness Gauge external TN 60-0.01EE, Material thickness pulse-echo [Max] (mm) 600 mm

Description

• Description

  • External measuring head
  • USBdata interface, as standard
  • Scan mode (10 measurements per sec.) or single point measuring mode possible
  • Internalmemoryfor up to 20 files (with up to 100} values per file)
  • Selectable measuring units: mm inch
  • Two measuring modes to determine material thickness:
    – Pulse-Echo mode
    – Echo-Echo mode
  • Echo-Echo measuring: Determining the actual thickness of materials irrespective of any coating which might be present. In this way, the wall thickness of pipes, for example, can be determined in a non-destructive manner, without having to remove the coating and the measurement can be shown on the display, with the adjustment for the coating thickness already taken into account
  • Echo-Echo measurements are only possible with the measuring head included as part of the delivery (SAUTER ATU-US12, seeaccessories)
  • Scope of delivery: Operating instructions, batteries, external measuring head ( 10 mm) and ultrasound contact gel

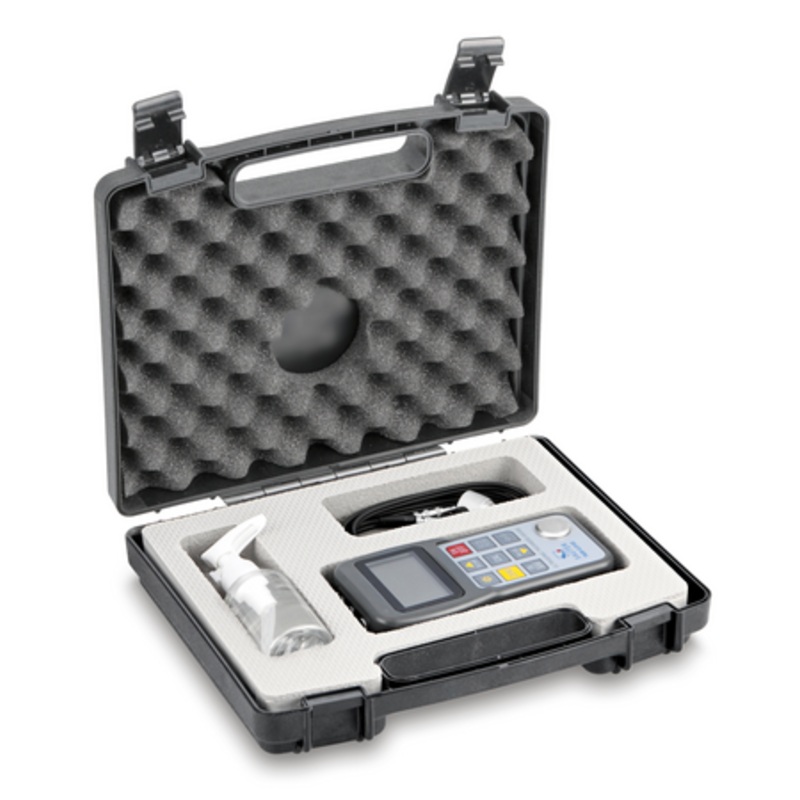

  • Delivered in a robust carrying case

Technical Data

Material thickness pulse-echo [Max] (mm) 600 mm Material thickness pulse-echo [Min] (mm) 0,7 mm Material thickness echo-echo [Max] (mm) 60 mm Material thickness echo-echo [Min] (mm) 3 mm Measuring range pulse-echo 0,7 mm 600 mm Measuring range echo-echo 3 mm 60 mm Readability material thickness [d] (mm) 0,01 mm Tolerance (% of [Max]) 0,5% Units mm, inch Speed of sound [Max] (m/s) 9999 m/s Speed of sound [Min] (m/s) 1000 m/s Speed of sound 1000 m/s 9999 m/s Measuring head measuring frequency 5 MHz Battery 21.5 V AA Memory function Material housing plastic Dimensions completely mounted (WDH) 1507432 mm Interfaces USB-Device Cable length 0,9 m
