Kern Sound Level Meter SW 1000 Measuring range Sound 20 dB 134 dB Readability sound [d] (dB)0,1 dB

Description

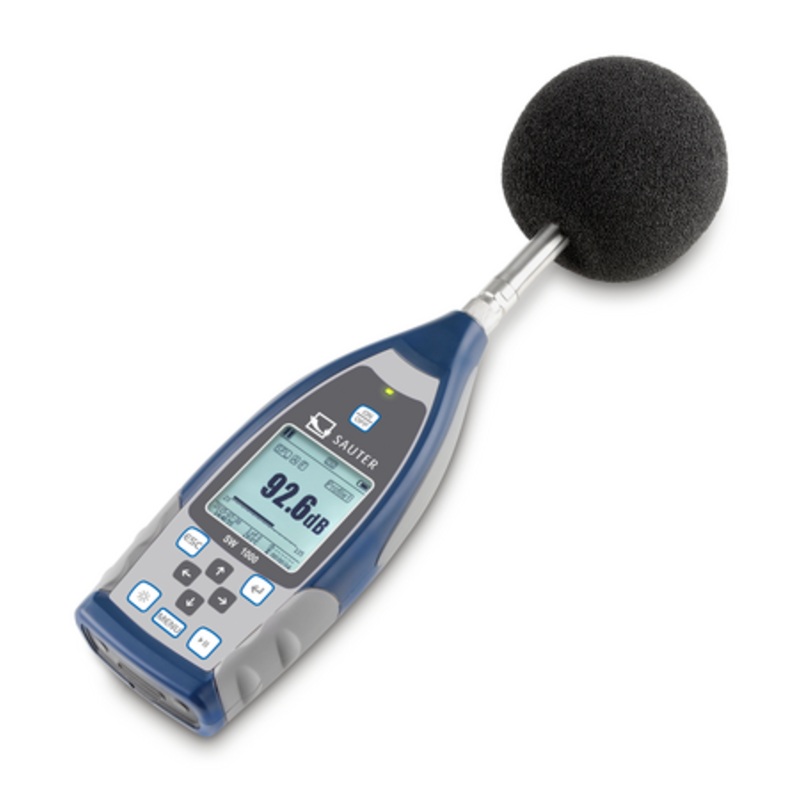

• First-class professional Class I, Class II sound level meter

• Description

  • Ideal for measurements for workplaces outdoor, e.g. at airports, on building sites, in road traffic etc. with wide frequency access
  • Modern microcontroller architecture for increased stability and accuracy
  • A specially-developed algorithm permits a compliant dynamic range of > 123 dB
  • Three profiles and 14 user-defined measurements can be calculated in parallel with different frequency and time weighting
  • LN statistics and display of the graph showing the progression of time
  • User-defined integral interval measurement up to a maximum of 24 hours is possible
  • Frequency weighting (filter) A, B, C, Z
  • Time interval during measurement: F (fast), S (slow), I (pulse)
  • Freely-definable limits for the output of an optical alarm signal
  • Peak Hold function to capture peak value
  • Octave function for targeted sound analysis, can be expanded to 1/3 octave through the purchase of a licence
  • TRACK function with graphic display of a measurement
  • Calibration mode (with optional calibrator)
  • Trigger mode: external start/stop of measurement via 3,5 mm connector
  • Automatic measurement for timer function is possible
  • Operating languages: EN, DE, FR, ES, PT
  • Option of fitting a stand on the rear of the housing, ” thread
  • Delivery in robust transport case

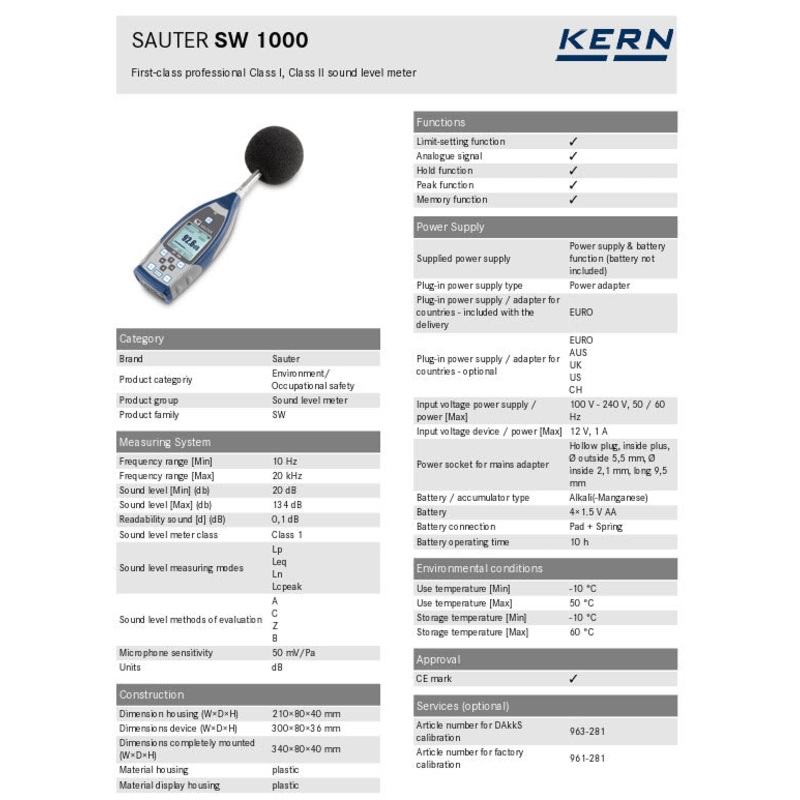

  • Technical Data

    Measuring range Sound 20 dB 134 dB Readability sound [d] (dB) 0,1 dB Units dB Sound level measuring modes Lp, Leq, Ln, Lcpeak Sound level methods of evaluation A, C, Z, B Frequency range 10 Hz 20 kHz Memory function Hold function Peak function Limit-setting function Microphone sensitivity 50 mV/Pa Battery 41.5 V AA Material housing plastic Dimensions completely mounted (WDH) 3408040 mm Product family SW
