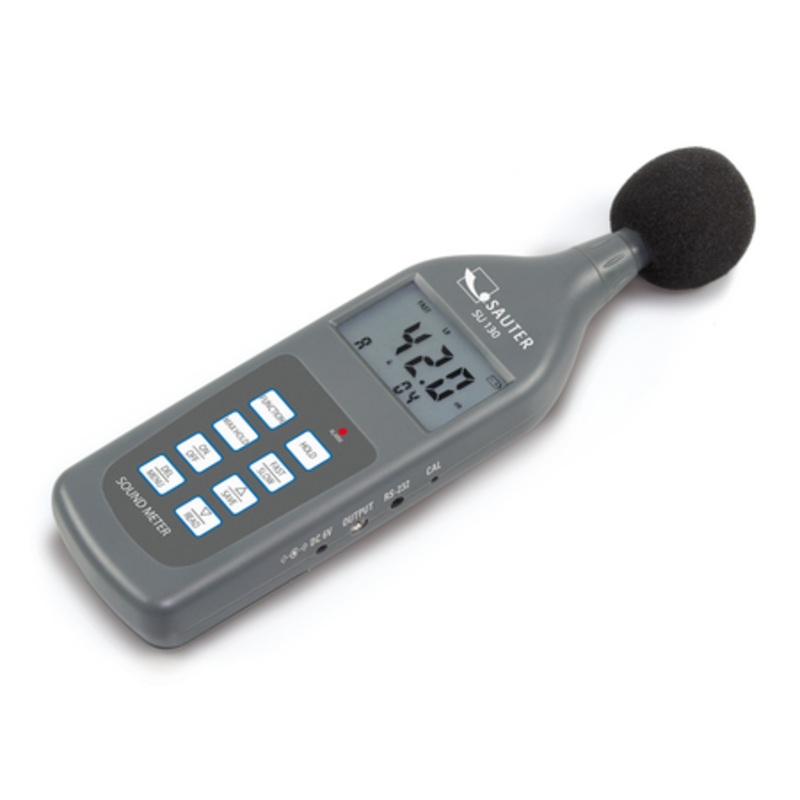

Kern Sound Level Meter SU 130 Measuring range Sound 30 dB 130 dB Readability sound [d] (dB) 0,1 dB

Description

Description

• Sound level meter with basic functions for measuring noise in areas such as, environment, mechanical applications, car industry and much more
• Measures the sound intensity in the workplace
• Helps in differentiating between normal noise influences, and excessive noise, nuisances e.g. in a production hall
• Data interfaceRS-232, included
• Multi measuring functions:
  Lp: Standard sound level measuring function
  Leq: Energy equivalent sound level measuring mode (type A)
  Ln: Shows the deviation from a pre-defined limit in %
• Selectable methods of evaluation:
  A: As sensitive as the human ear
  C: Sensitive for noisier environmental conditions, where there are machines, plant, motors etc.
  F: For areas with constant sound intensity
• Limit value function: programmable value for the maximum level value
• Track function for continuous recording of changing environmental conditions
• Peak Hold function to capture peak value
• Internalmemoryfor 30 measured values, transferable to PC with SAUTER ATC-01

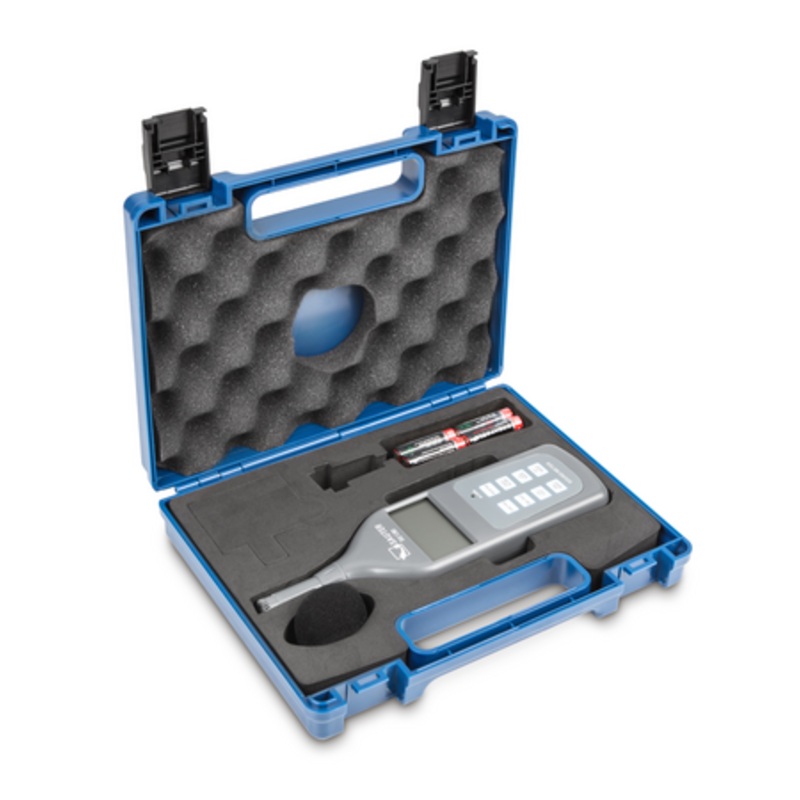

• Delivered in a robust carrying case

• Technical Data

  Measuring range Sound 30 dB 130 dB Readability sound [d] (dB) 0,1 dB Tolerance (% of [Max]) 3% Units dB Sound level measuring modes Lp, Leq, Ln Sound level methods of evaluation A, C, F Frequency range 20 Hz 12,5 kHz Memory function Hold function Peak function Limit-setting function Microphone sensitivity 30 mV/Pa Battery 41.5 V AAA Material housing plastic Dimensions completely mounted (WDH) 2366340 mm Product family SU
