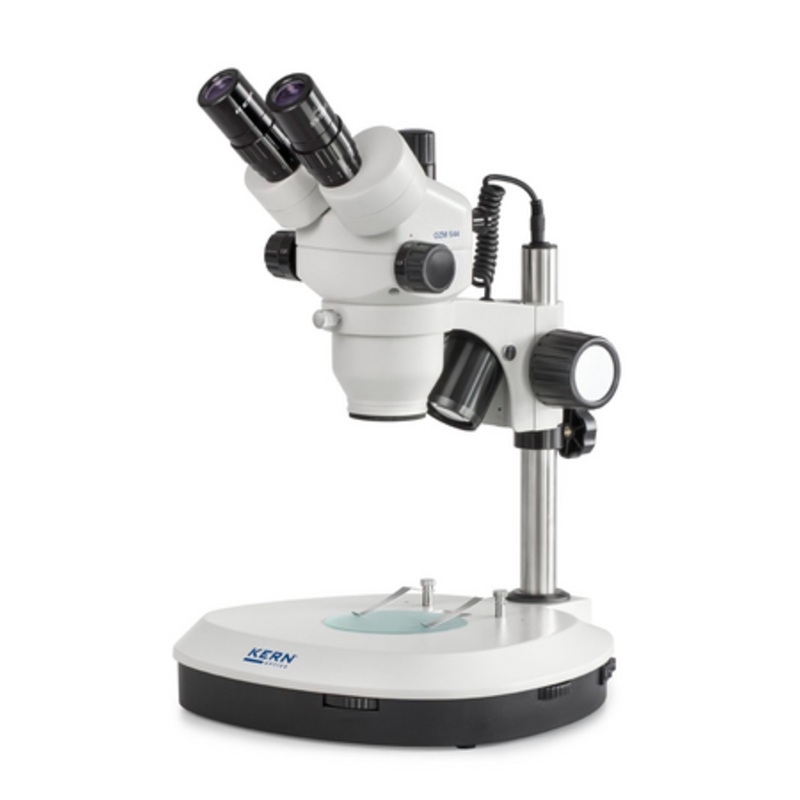

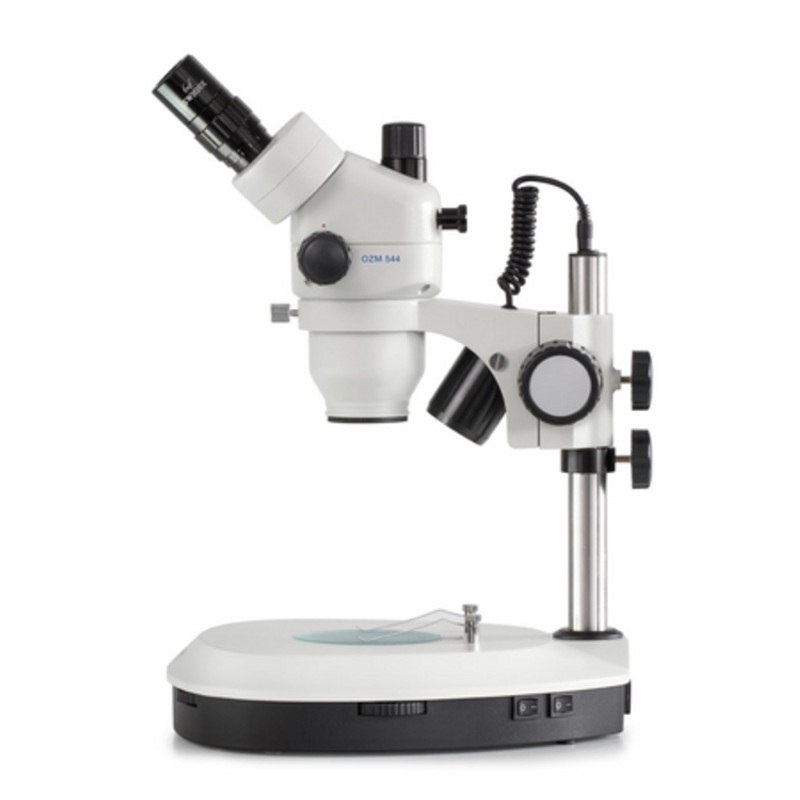

Kern OZM 544 Stereo Zoom Microscopes Trinocular HWF Eyepiece 10 , Zoom 0,7 x – 4,5 x , 3W LED, Incident/Transmitted

Description

• First-class optics and strong illumination combined with a high level of flexibility
• The KERN OZM-5 series is a range of excellent stereo zoom microscopes with above-average optical features.
• The ergonomic shape allows a simple, effortless working over a period of several hours.
• The extraordinarily strong and continuously dimmable 3W LED incident and transmitted illumination ensures a flexible and particularly good level of illumination for your sample.
• With its large working distance, an extra large field of view and its brilliant resolution, the KERN OZM provides sharp, high-contrast, colour-true images.
• Light distribution: 0:100
• Objective: 0,7 x 4,5 x
• There is a choice of a binocular model as well as a trinocular model for connecting a camera for documentation purposes and for quality reports
• The pillar stand is particularly flexible due to its variable and sturdy adjustment mechanism and therefore enables ergonomic working procedures.
• A large selection of eyepieces, (universal) stands, a darkfield kit, external illumination units as well as auxiliary objectives and more are available as accessories
• A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery

• Technical Data

  Optical system Greenough Tube type Trinocular Ocular magnifications 10 x Ocular visual field 23 mm Magnification ratio 6,4:1 Zoom [Min] 0,7 x Zoom [Max] 4,5 x Illuminance Reflected light, Transmitted light Illumination intensity transmitted light 3 W Illumination type transmitted light LED Illumination intensity incident light 3 W Illumination type incident light LED Focusing mechanism coarse drive Working distance 110 mm Sample height [Max] 130 mm Stand type pillar Dimension (WDH) 330285440 mm GTIN/EAN number 4045761169302
