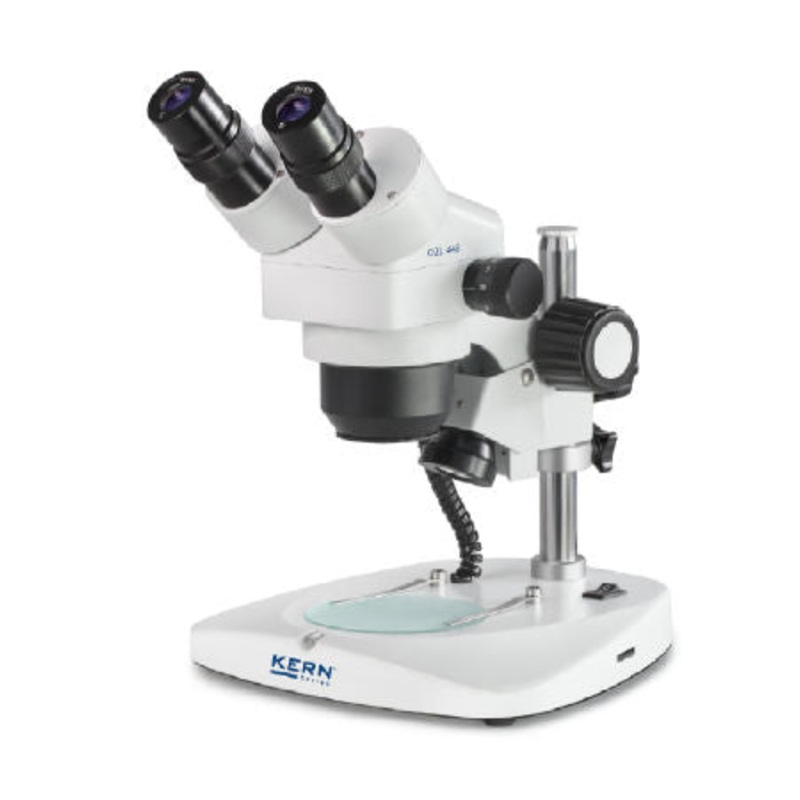

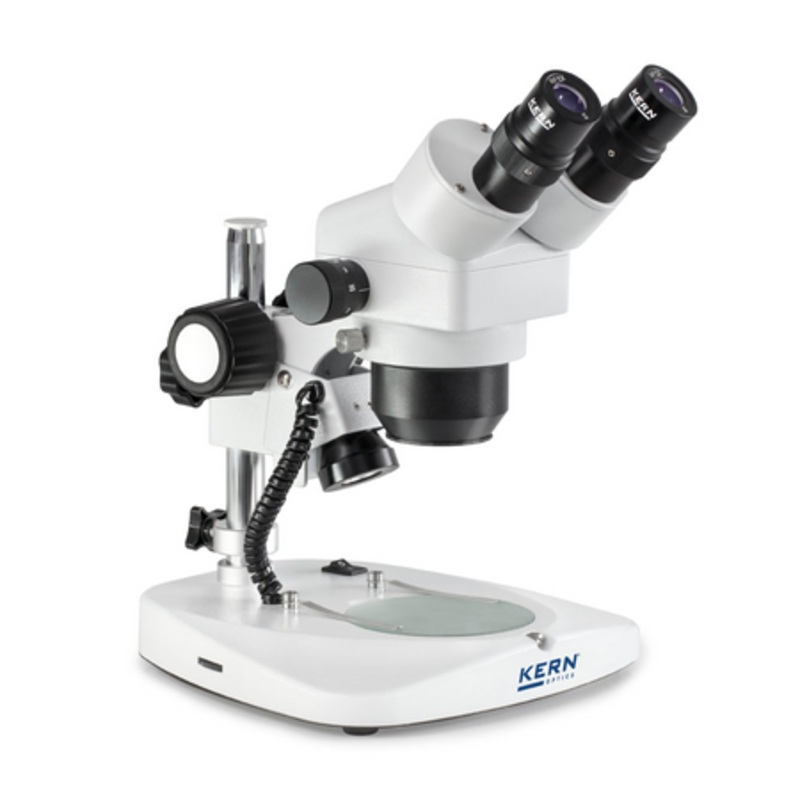

Kern OZL Stereo Zoom Microscopes OZL445 Binocular 10x Eye piece, Zoom .75 to 3.6X, 1W LED Incident, .35W LED Transmitted

Description

• The KERN OZL-44 is a stereo zoom microscope, which will impress you with the easy handling, flexibility as well as the stability and economical price
• The LED incident and transmitted illumination included as standard guarantees the very best illumination of your sample
• As well as excellent optical characteristics and their large working surface, these models offer the highest level of comfort in this class ideal for training companies, workshops as well as assembly and repair workstations, e.g. in the electronics industry.
• As standard this microscope offers you continuous total magnification of 7,5 x36 x
• The OZL-44 series is available as a binocular version. The eyepieces are fixed in the eyepiece tube, to stop them getting damaged or lost.
• The pillar stand offers you the highest level of flexibility and the freedom to remove the microscope head and to integrate it into other modular systems, for example into a universal stand
• A large selection of eyepieces, external illumination units as well as auxiliary objectives are available as accessories
• A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery

The affordable and flexible stereo zoom microscope for laboratories, inspection authorities and quality controls

Optical system Greenough Tube type Binocular Ocular magnifications 10 x Ocular visual field 20 mm Magnification ratio 4,8:1 Zoom [Min] 0,75 x Zoom [Max] 3,6 x Illuminance Reflected light, Transmitted light Illumination intensity transmitted light 0,35 W Illumination type transmitted light LED Illumination intensity incident light 1 W Illumination type incident light LED Focusing mechanism coarse drive Working distance 86 mm Sample height [Max] 100 mm Stand type pillar Dimension (WDH) 230235360 mm GTIN/EAN number 4045761170377
