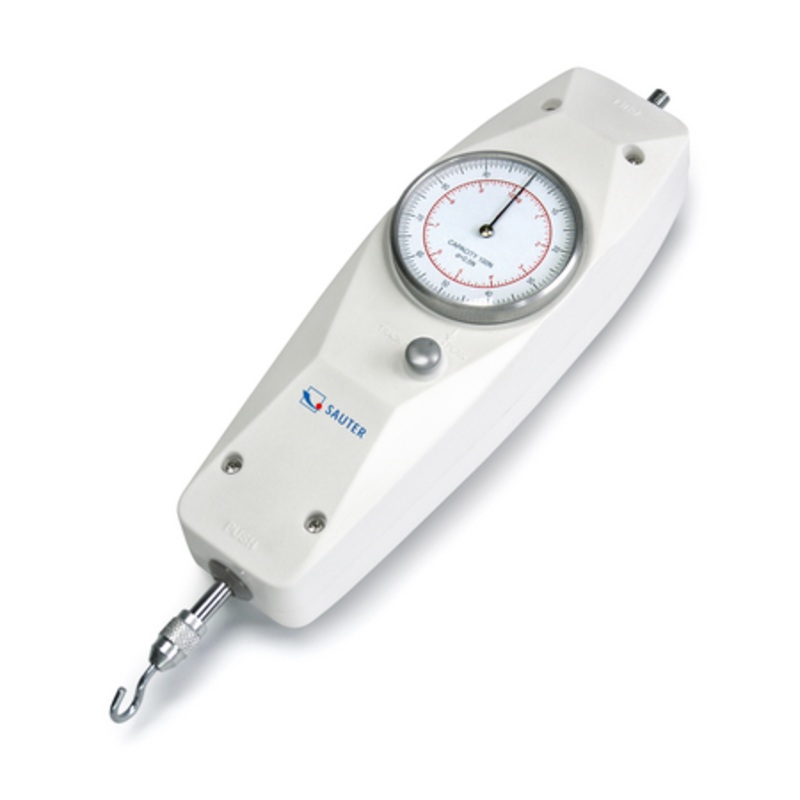

KERN Mechanical force gauge FA 20 Measuring range force [Max] (N) 20 N Readability force [d] (N) 0,1 N

Description

• Description

  • Dual scale: shows Newton and kg
  • Turnable display unit for an easy zero setting of the instrument
  • Peak hold function by drag pointer
  • Can be mounted on all manual test stands
  • Zeroing by a short push of the switch
  • Delivered in a robust carrying case

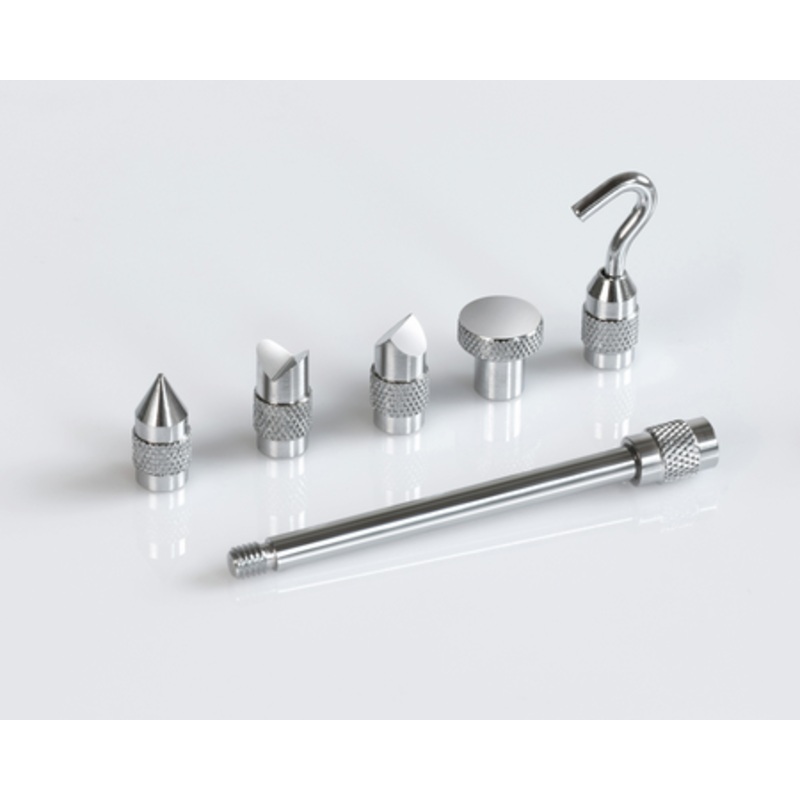

  • Standard attachments as shown, extension rod: 90 mm, included with the delivery

• Technical Data

  Measuring range force [Max] (N) 20 N Readability force [d] (N) 0,1 N Tolerance (% of [Max]) 1% Peak function Y Material housing plastic Dimensions completely mounted (WDH) 2325951 mm Net weight approx. 0,50 kg GTIN/EAN number 4045761139916
