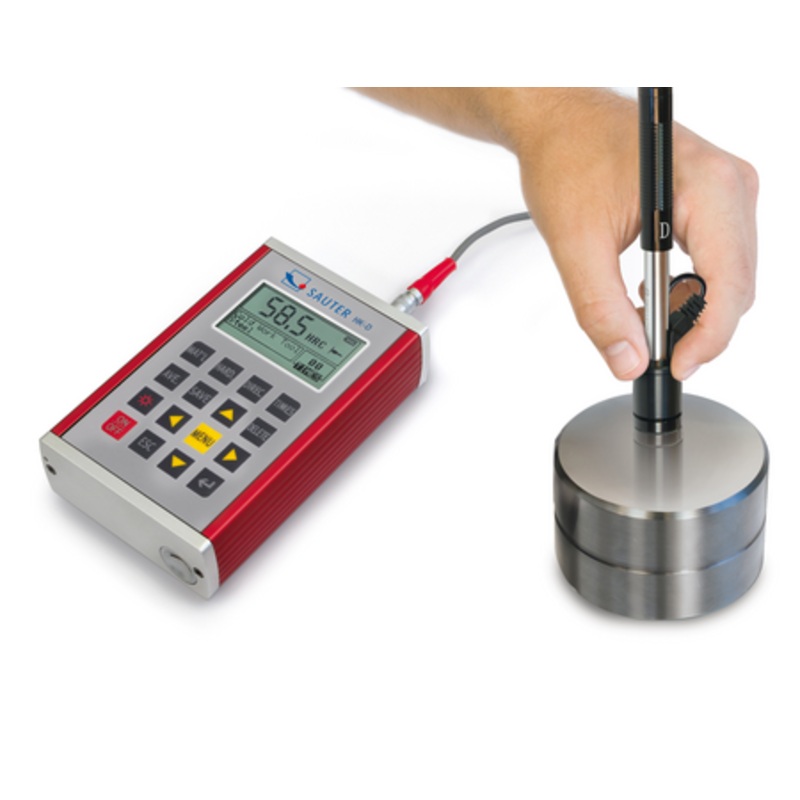

KERN Leeb hardness tester HK-D Measuring range Leeb 170 960, Units HL, HV, HB, HRB, HRC

Description

• Description

  • External impact sensor standard (Type D)
  • Mobility: In comparison with stationary table-top devices and testing devices with an internal sensor, using the SAUTER HK-D offers the highest level of mobility and flexibility
  • All measurement directions possible (360) thanks to an automatic compensation function
  • Measurement value display: Rockwell (Type A, B, C), Vickers (HV), Shore (HS), Leeb (HL), Brinell (HB
  • Internalmemoryfor up to 600 data groups, with up to 32 values per group forming the average value of the group
  • Mini statistics function: displays the measured result, the average value, the impact direction, date and time
  • Automatic unit conversion: The measuring result is automatically converted into all specified hardness units
  • Measuring with tolerance range (limit-setting function): Upper and lower limiting can be programmed individually. The process is supported by an audible and visual signal
  • Matrix display: Backlit multi-function display for all relevant functions at a glance
  • Robust metal housing
  • Delivered in a robust carrying case

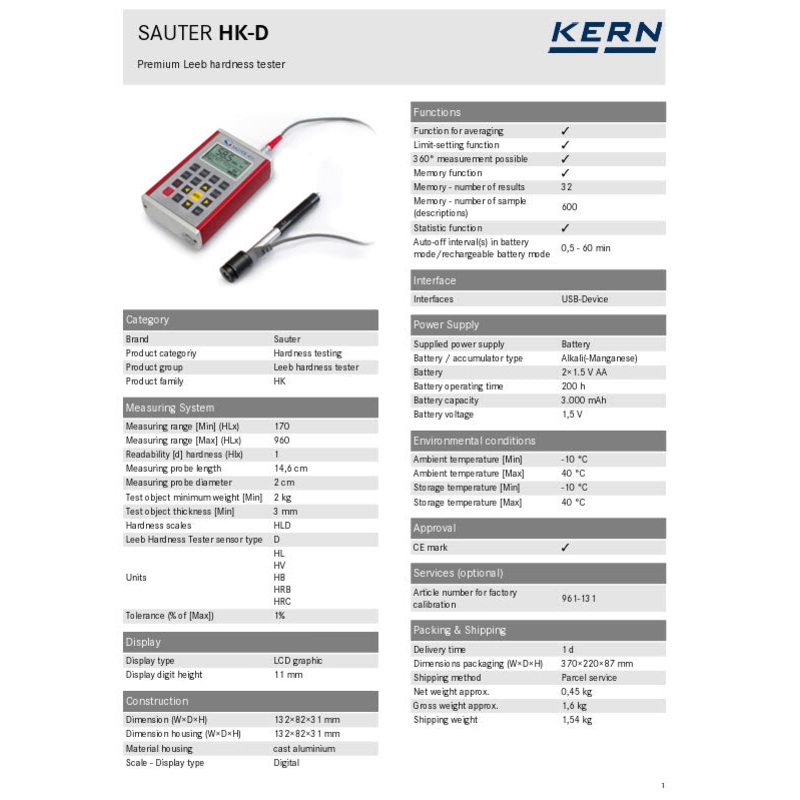

Technical Data

Measuring range Leeb 170 960 Readability [d] hardness (Hlx) 1 Tolerance (% of [Max]) 1% Units HL, HV, HB, HRB, HRC Hardness scales HLD Test object thickness [Min] 3 mm Test object minimum weight [Min] 2 kg Battery 21.5 V AA Memory function yes Statistic functiony yes Function for averaging yes Interfaces USB-Device Material housing cast aluminium Measuring probe diameter 2 cm Measuring probe length 14,6 cm Product family HK GTIN/EAN number 4045761139473
