Interchangeable Anvil Micrometer 25-50mm 117-102

Original price was: $183.40.Current price is: $91.70.

SKU: TEEm7WFvVk9VM Category:

Description

A Mitutoyo non-digital micrometer that accepts easily interchangeable anvils to enable a wide variety of measurement, such as tubing thickness, shoulder-edge distance and rivet height. A ratchet stop guarantees repeatable measurement.

Specification

Digital/Analog: Analog

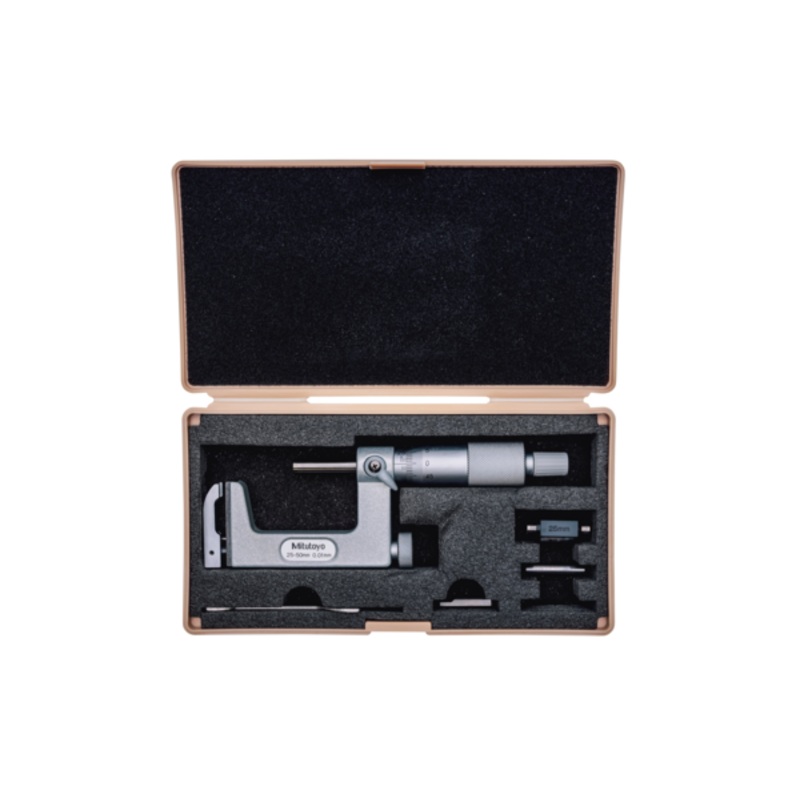

Delivered: Including box, spanner, setting standard, flat anvil 201216, rod anvil 201379

Inch-Metric: Metric

Range: 25 – 50 mm

Graduation: 0,01 mm

Spindle feed error: 3 m

Flatness: 0,6 m (spindle),
2 m (anvil)

Parallelism: 3 m

Measuring face: Carbide-tipped micro-lap finish spindle and hardened steel anvil

Measuring spindle: With spindle lock, 6,35 mm, spindle pitch 0,5 mm

Scale: Thimble and sleeve satin chrome finish, 18 mm

Measuring force: 5 – 10 N

Content of Set: Anvils 201379, 201216

Mass: 320 g
