Description

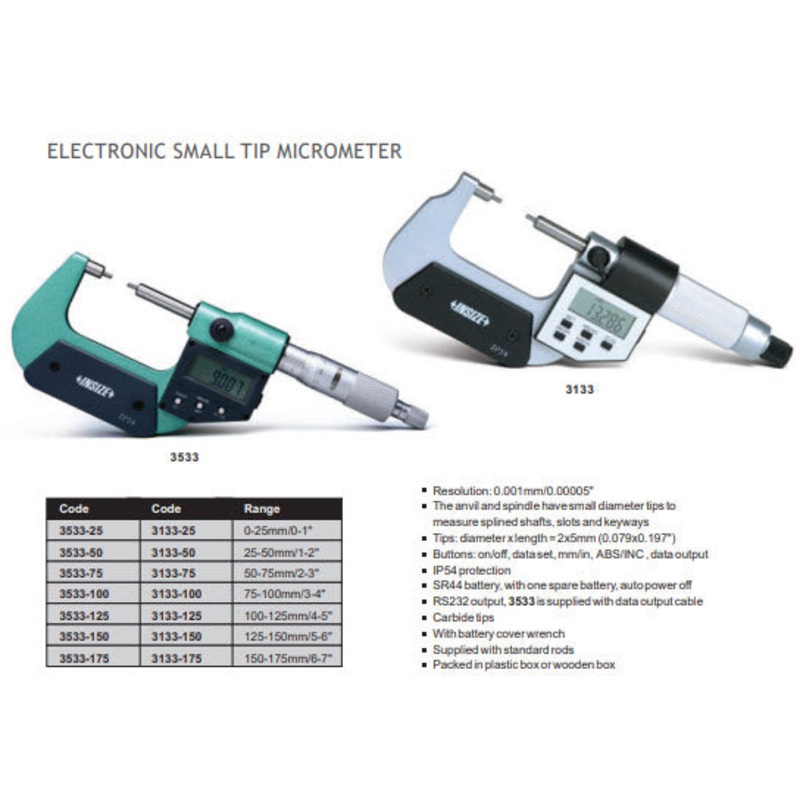

Insize Small Anvil
Resolution: 0.001mm/0.00005″
The anvil and spindle have small diameter tips to measure splined shafts slots and keyways
Tips: diameter x length = 2x5mm (3x10mm is optional)
Buttons: power on/off data set metric-inch conversion absolute and incremental measurement data output
RS232 output IP54 protection
SR44 battery with one spare battery auto power off
DIN863 chrome plated frame ratchet friction thimble spindle lock with battery cover wrench carbide tips
Micrometers over 0-25mm/0-1″are supplied with standard rods
Packed in plastic box or wooden box
Insize Spline Micrometers 3533-25 Range 0-1″/0-25mm x .00005″/.001mm
