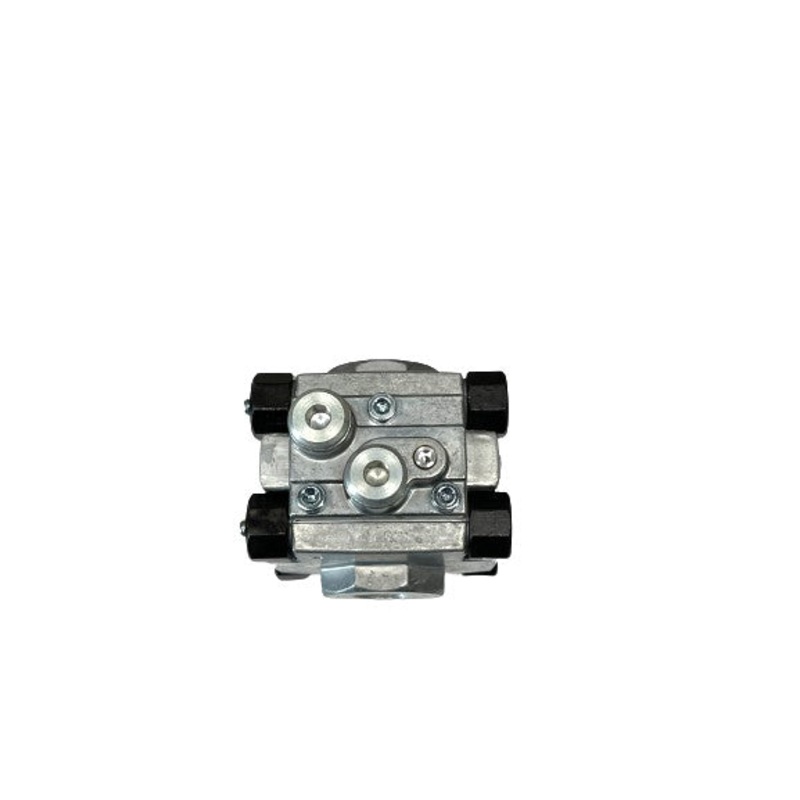

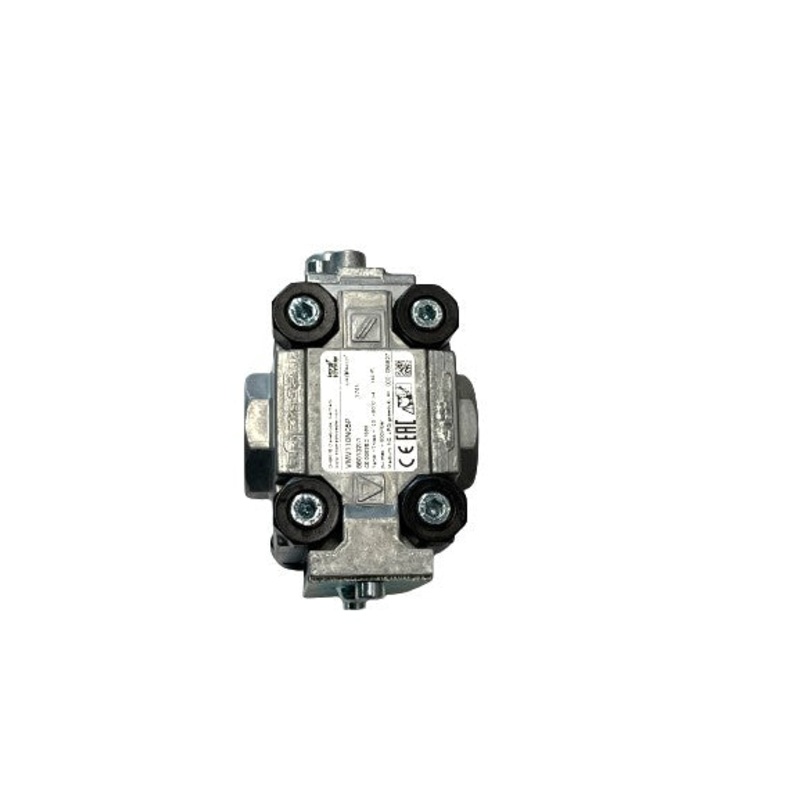

Honeywell Kromschroder VMV Fine Adjusting Valve

Description

USE THE TECHNICAL LITERATURE BELOW TO DETERMINE THE SPECIFICATIONS YOU REQUIRE. OR CONTACT US FOR MORE OPTIONS AND ASSISTANCE.

BULK ORDERS AND LESS COMMON PRODUCTS MAY REQUIRE ADDITONAL TIME FOR SHIPMENT.CONTACT USVIA PHONE OREMAILTO REQUEST MORE INFORMATION ON AVAILABILITY, AND FOR PART NUMBERS NOT LISTED

The VMV offers precise control in a modular applicationhousing for maximum flexibility.

The modular design allows the user tovary both inlet and outlet to meet plumbing requirements.

The adjust gate is characterized to provide a linear flow characteristic.

• Fine adjusting screw to adjust slide-gate
• Pressure taps to measure up-stream and downstream pressures
• Standard valVario series adapter plates

Model
Description MFG Part# VMV110N05P 3/8″ X 3/8″ NPT FLANGES INSTALLED, SCREW PLUGS KS88013231 VMV 115N05P 1/2″ X 1/2″ NPT FLANGES INSTALLED, SCREW PLUGS KS88013108 VMV 125N05P 1″ X 1″ NPT FLANGES INSTALLED, SCREW PLUGS KS88013233 VMV 240N05P 1-1/2″ X 1/2″ NPT FLANGES INSTALLED, SCREW PLUGS KS88013234

See VMVChart here:

Click to Enlarge

RESOURCES:

• VMV Technical Literature

• VMV Operating Instructions
