Description
Product Code: MX2202

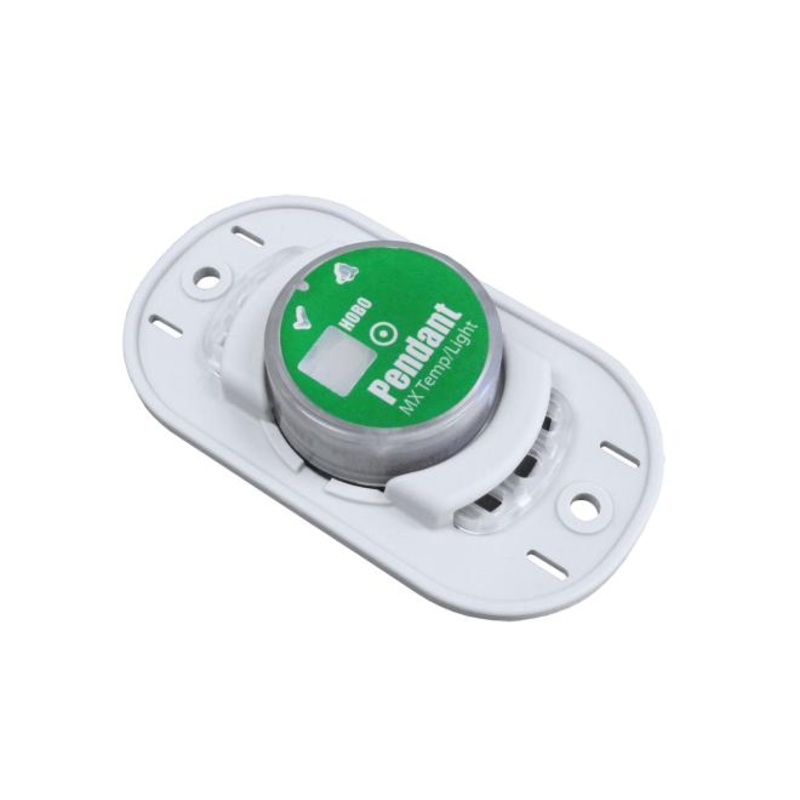

Using the power of Bluetooth technology, this data logger delivers measurements directly to your iOS or Android mobile device! Just download the freeHOBOmobile App to get started and configure the data logger. The MX2202 measures air temperature, water temperature, and light intensity. The compact, waterproof logger can operate in indoor, outdoor, or underwater environments. An LED alarm lets you know when a sensor reading rises above or falls below a specified value. Mounting tabs allow for fast, easy deployment, and the data loggers memory stores 96,000 measurements.
Temperature Sensor:
- Range: -4F to 158F (-20C to 70C) in air or -4F to 122F (-20C to 50C) in water;
- Accuracy: 0.5C from -20C to 70C (-4F to 158F);
- Resolution: 0.072F (0.04C);
- Drift: <0.18F (0.1C) per year;
Light Sensor:
- Range: 0 to 167,731 lux (15,582 lum/ft2);
- Accuracy: 10% typical for direct sunlight.
Logger:
- Response Time: 17 minutes typical to 90% in air moving 1 m/s, unmounted or 7 minutes typical to 90% in stirred water, unmounted. Transmission Range: Approximately 100 line-of-sight.
- Wireless Data Standard: Bluetooth Smart (Bluetooth Low Energy, Bluetooth 4.0).
- Operating Range: -4F to 158F (-20C to 70C) in air.
- Logging Rate: 1 second to 18 hours.
- Waterproof: To 100.
- Memory: 96,000 measurements.
- Battery: CR2032 3V lithium.
- Battery Life: 1 year typical at 77F (25C) with logging interval of 1 minute and Bluetooth Always Off disabled in software; 2 years typical at 77F (25C) with logging interval of 1 minute and Bluetooth Always Off enabled in software.
- Time Accuracy: 1 minute per month at 77F (25C).
- Full Memory Download: Approximately 45 seconds.
- Dimensions: 3.35 x 5.64 x 1.8 cm /1.32 x 2.22 x 0.63.
- Weight: 12.75 g / 0.45 oz.
The HOBO MX2202 data logger requires theHOBOmobile Appand a compatible mobile device.
Mounting Requirements: It is very important that the logger housing does not become distorted when mounted. When mounting these loggers to any non-flat surface, such as rebar or buoy lines, we recommend using the includedMounting Boot (BOOT-MX2201-2202). This boot is also useful for mounting loggers so that they can be easily removed for service. Purchase additional mounting boots as needed!
