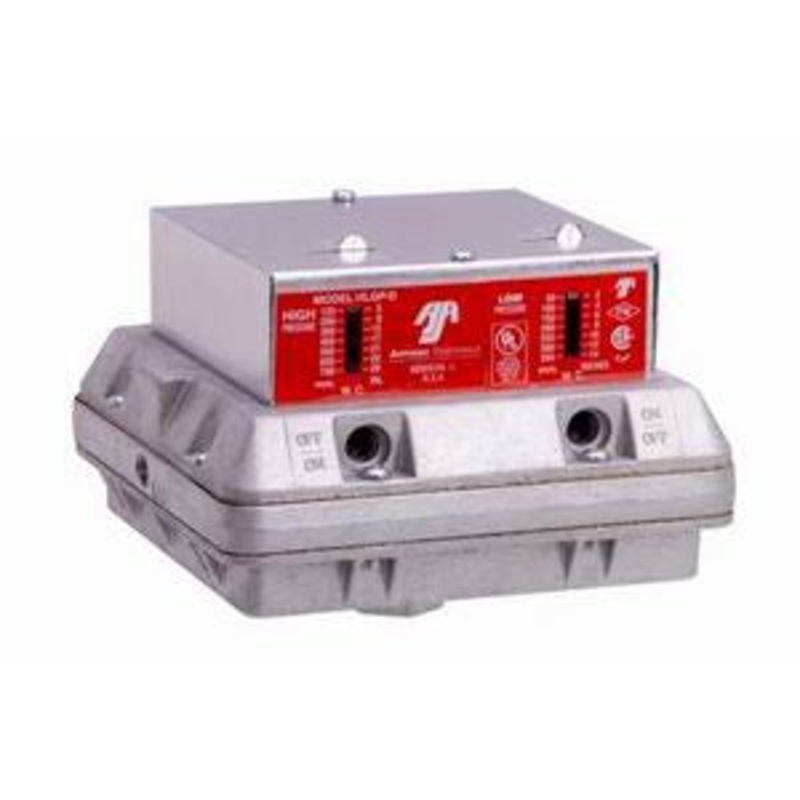

HLGP-D – High/Low Double Gas Pressure Switch DPDT- Manual Reset

Description

Double Gas Pressure Switch offers single point monitoring for High and Low Gas pressure conditions. These units offer adjustable setpoints on the high and low sides of the DPDT pressure switch with a manual reset mechanism

Available Pressure Ranges:

• HIGH 5-28″ / LOW 2-14″ WC (125-700/50-350mm) 804114201 HLGP-D 5-28/2-14
• HIGH 10-50″ / LOW 2-14″ WC (250-1250/50-350mm) 804114202 HLGP-D 10-50/2-14
• HIGH 10-50″ / LOW 10-50″ WC (250-1250/250-1250mm) 804114203 HLGP-D 10-50/10-50

Features and Specifications:

• Manufactured byCrossroads Controls, formerly by Antunes Controls
• Rugged Die-Cast Aluminum Housing
• Two circuit controleach setpoint controls two independent, dry contacts to switch to different voltages
• Approvals:UL, FM, CSA
• Electrical Ratings:
• 10A, 1/8HP @ 125 VAC.;
• 5A, 1/4 HP @ 250 VAC.;
• Pilot Duty, 125 VA @ 125-250 VAC.
• Max Surge Pressure:10 PSI Max
• Max Ambient Temperature:140F / 60C
• Min. Ambient Temperature:-40F / -40C
• Connections:
• 1/4″NPT High Gas inlet,
• 1/8″NPT Low Gas inlet,
• 1/8″ Gas vent

Accessories:

• Double Switch Mounting Bracket

Resources:

• Crossroads Controls Model D Gas Pressure Switch Datasheet
• Crossroads Controls Model D Gas Pressure SwitchInstallation Instructions
• Former Antunes Controls Literature:
• Model D Gas Pressure Switch Datasheet
• Model D Gas Pressure Switch Installation Instructions
