Description

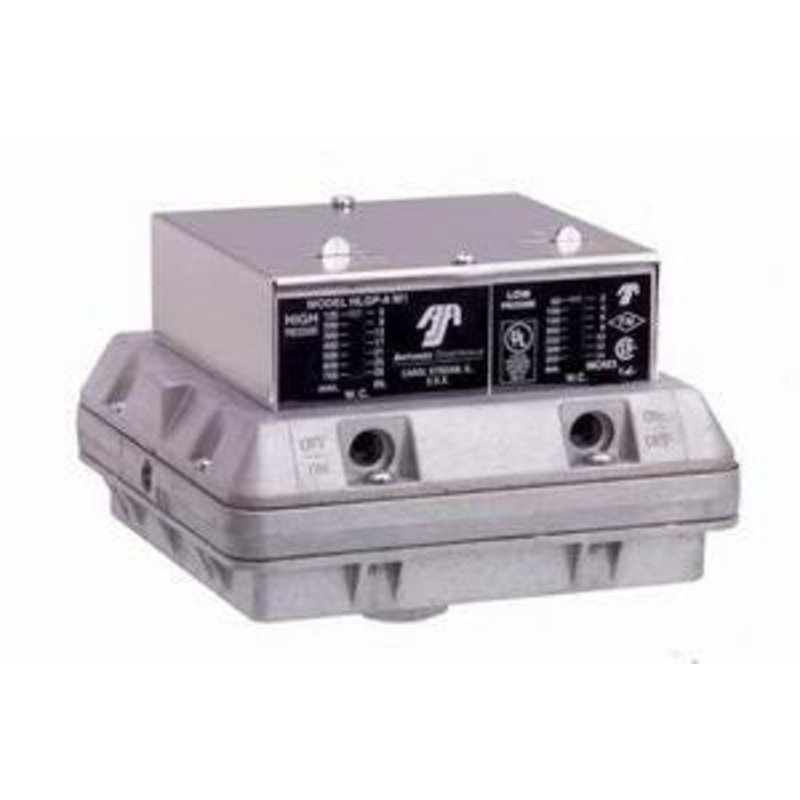

Double Gas Pressure Switch offers single point monitoring for High and Low Gas pressure conditions. These units offer adjustable setpoints on the high and low sides of the pressure switch with a manual reset mechanism
AvailablePressure Ranges:
- HIGH 2-16″ / LOW 1-6″ WC (50-400/25-150mm) 804111701 HLGP-A 2-16/1-6
- HIGH 5-28″ / LOW 1-6″ WC (125-700/25-150mm) 804111702 HLGP-A 5-28/1-6
- HIGH 10-50″ / LOW 1-6″ WC (250-1250/25-150mm) 804111703 HLGP-A 10-50/1-6
- HIGH 2-16″ / LOW 2-14″ WC (50-400/50-350mm) 804111704 HLGP-A 2-16/2-14
- HIGH 5-28″ / LOW 2-14″ WC (125-700/50-350mm) 804111705 HLGP-A 5-28/2-14
- HIGH 10-50″ / LOW 2-14″ WC (250-1250/50-350mm) 804111706 HLGP-A 10-50/2-14
- HIGH 5-28″ / LOW 6-24″ WC (125-700/150-600mm) 804111707 HLGP-A 5-28/6-24
- HIGH 10-50″ / LOW 6-24″ WC (250-1250/150-600mm) 804111708 HLGP-A 10-50/6-24
- HIGH 10-50″ / LOW 10-50″ WC (250-1250/250-1250mm) 804111709 HLGP-A 10-50/10-50
Features and Specifications:
- Manufactured byCrossroads Controls, formerly by Antunes Controls
- Rugged Die-Cast Aluminum Housing.
- Approvals:UL, FM, CSA
- Electrical Ratings:
- 10A, 1/8HP @ 125 VAC.;
- 5A, 1/4 HP @ 250 VAC.;
- Pilot Duty, 125 VA @ 125-250 VAC.
- Max Surge Pressure:10 PSI Max
- Max Ambient Temperature:140F / 60C
- Min. Ambient Temperature:-40F / -40C
- Connections:
- High Pressure Gas Inlet: 3/8″ NPT
- Low Pressure Gas Inlet 1/8″ NPT
- Vent 1/8″ NPT
Accessories:
- Double Switch Mounting Bracket
Resources:
- Crossroads Controls Model A Gas Pressure Switch Datasheet
- Crossroads Controls Model A Gas Pressure SwitchInstallation Instructions
- Former Antunes Controls Literature:
- Model A Gas Pressure Switch Datasheet
- Model A Gas Pressure SwitchInstallation Instructions
