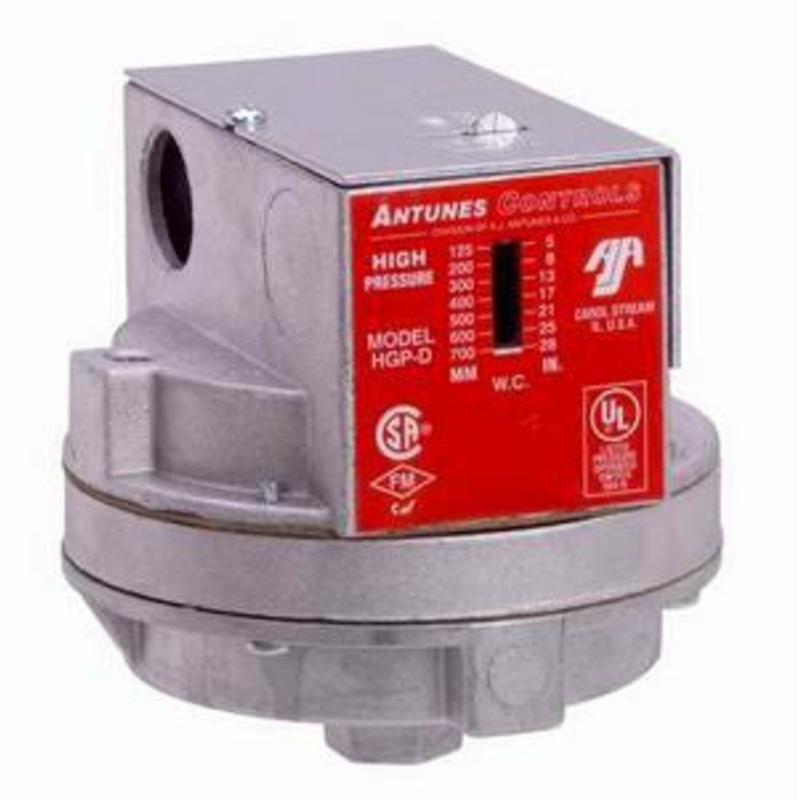

HGP-D – High Gas Pressure Switch DPDT- Manual Reset

Description

High gas pressure switch with DPDT switch, adjustable setpoint and a manual reset mechanism to trip at rising pressure conditions

Available Pressure Ranges:

• 5-28″ WC (125-700mm) 803113801 HGP-D 5-28
• 10-50″ WC (250-1250mm) 803113802 HGP-D 10-50

Features and Specifications:

• Manufactured byCrossroads Controls, formerly by Antunes Controls
• Rugged Die-Cast Aluminum Housing
• Two circuit controleach setpoint controls two independent, dry contacts to switch to different voltages
• Approvals:UL, FM, CSA
• Electrical Ratings:
• 10A, 1/8HP @ 125 VAC.;
• 5A, 1/4 HP @ 250 VAC.;
• Pilot Duty, 125 VA @ 125-250 VAC.
• Max Surge Pressure:10 PSI Max
• Max Ambient Temperature:140F / 60C
• Min. Ambient Temperature:-40F / -40C
• Connections:1/4″NPT Gas inlet, 1/8″NPT Gas vent

Accessories:

• Single Switch Mounting Bracket

Resources:

• Crossroads Controls Model D Gas Pressure Switch Datasheet
• Crossroads Controls Model D Gas Pressure SwitchInstallation Instructions
• Former Antunes Controls Literature:
• Model D Gas Pressure Switch Datasheet
• Model D Gas Pressure Switch Installation Instructions
