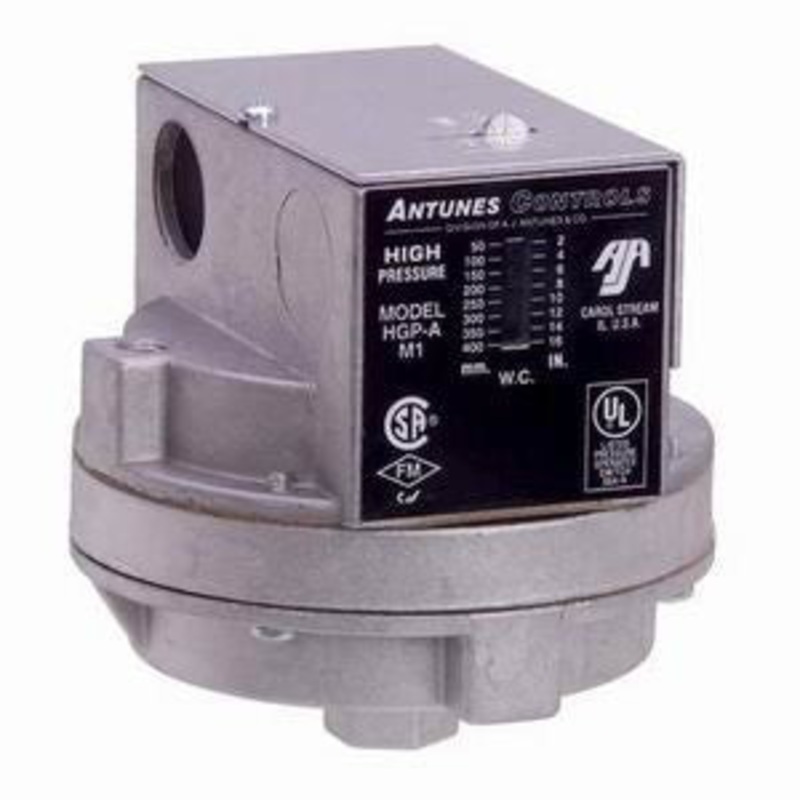

HGP-A – High Gas Pressure Switch – Manual Reset

Description

High gas pressure switch with adjustable setpoint and a manual reset mechanism to trip at rising pressure conditions.

Available Ranges:

• 2-16″ WC (50-400mm) 803112601 HGP-A 2-16
• 5-28″ WC (125-700mm) 803112602 HGP-A 5-28
• 10-50″ WC (250-1250mm) 803112603 HGP-A 10-50

Features and Specifications:

• Manufactured by Crossroads Controls, formerly by Antunes Controls
• Rugged Die-Cast Aluminum Housing.
• Approvals: UL, FM, CSA
• Electrical Ratings:
• 10A, 1/8HP @ 125 VAC.;
• 5A, 1/4 HP @ 250 VAC.;
• Pilot Duty, 125 VA @ 125-250 VAC.
• Max Surge Pressure: 10 PSI Max
• Max Ambient Temperature: 140F / 60C
• Min. Ambient Temperature: -40F / -40C
• Connections: 1/4″NPT Gas inlet, 1/8″NPT Gas vent

Accessories:

• Single Switch Mounting Bracket

Resources:

• Crossroads Controls Model A Gas Pressure Switch Datasheet
• Crossroads Controls Model A Gas Pressure SwitchInstallation Instructions
• Former Antunes Controls Literature:
• Model A Gas Pressure Switch Datasheet
• Model A Gas Pressure SwitchInstallation Instructions
