Description

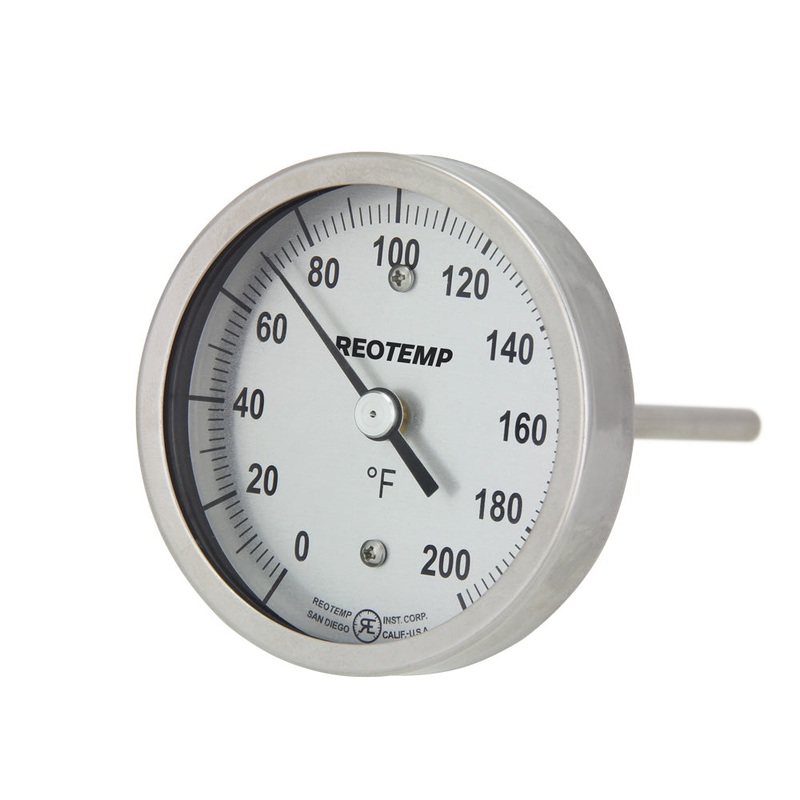

BACK CONNECT BIMETAL THERMOMETER
REOTEMPs Bimetal Thermometers are reliable and accurate temperature sensors requiring no electricity or wiring.Back Connect Thermometers are ideal for local, eye-level temperature readings in most process applications. They canbe recalibrated with a turn of the calibration screw on the back of the dial. A variety of options are available for your specific process needs.
- Made to ASME B40.3 Specifications
- Accuracy 1% Full Scale (ASME B40.3 Grade A)
- All Stainless Steel Construction
- Hermetically Sealed (ASME B40.3)
- Silicone Fillable for Vibration
- Standard and Custom Stem Lengths
- Standard External Reset for Calibration
- OEM Logo Dials/Custom Dials
- Five Year Warranty
Specifications
Accuracy: 1% Full Scale (ASME B40.3 Grade A) Dial Size:3, 4 or 5 Dial Material: Anodized aluminum with black marks on satin matte finish background; White or Hi-Vis background available. Stem Length:2 to 80 Stem Diameter:1/4 (std) ; 3/8 & 5/16 available Head, Bezel, Mounting Bushing, Stems:300 Series SS, 316SS (optional) Operating Conditions:Head temperature should not exceed 200F (150F if silicone filled). Stem should not be exposed to continuous temperatures exceeding 50% over-range or 800F(550F if silicone filled). Temperature Ranges:See inside back cover of temperature catalog for complete list of ranges. Case Rating:IP67, NEMA 6 Rated (Hermetically sealed per ASME B40.3) Lens:Glass (std), Acrylic, Polycarbonate, Tempered Glass, Laminated Safety Glass Immersion:Minimum 2 in liquid, and 4 in gas for most ranges. Certain ranges require up to 4 in liquids & 5 in gas Mounting Connection:1/2 NPT (std), 1/4 NPT, 3/4 NPT, Plain Hex Bushing, 1/2 BSPT, Sanitary Tri-Clamp Temperature Sensing Area:Last 2 to 4 of the stem Note: Thermowells should be used whenever the stem or bulb would be exposed to pressure, corrosion, velocity, abrasion or shear forces. Thermowells also make it possible to remove the thermometer without losing pressure or the contents of the process.
Data Sheet
Download Datasheet
Install Instructions
Download Install Instructions:
- Back-Bottom-Bimet-Installation-BBTINST-0414 (PDF)
