Description
Mitutoyo Dial Gauge Stands are designed for comparison measurements of size using a dial indicator or Digimatic Indicator.
Specification
Effective table dimensions: 58 mm
Column : 30 mm
Max. measurement height: 95 mm

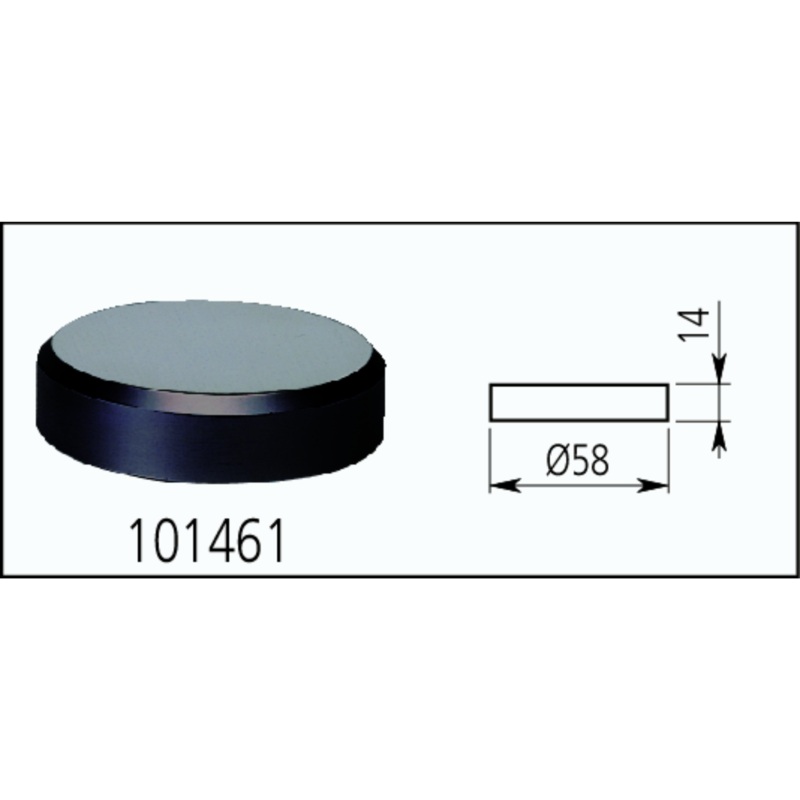

Measuring Table: Flat (101,461)
Fine adjustment: 1 mm
Stem hole : 3/8″ / 9.53 mm , 8 mm with bush (standard accessory)
Stem hole : 9,53 mm ( 8 mm with bush)
Perpendicularity table-stem hole: 0,4/100 mm
Table flatness: 1,3 m
Mass: 4 kg
All images are for representation only.
