G Metric (05/6020)

Description

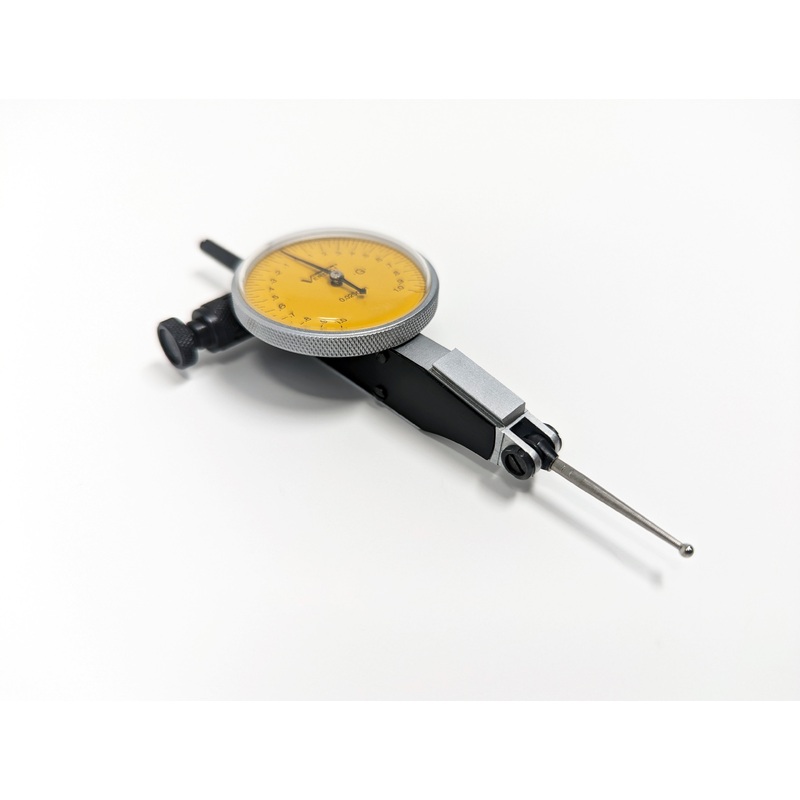

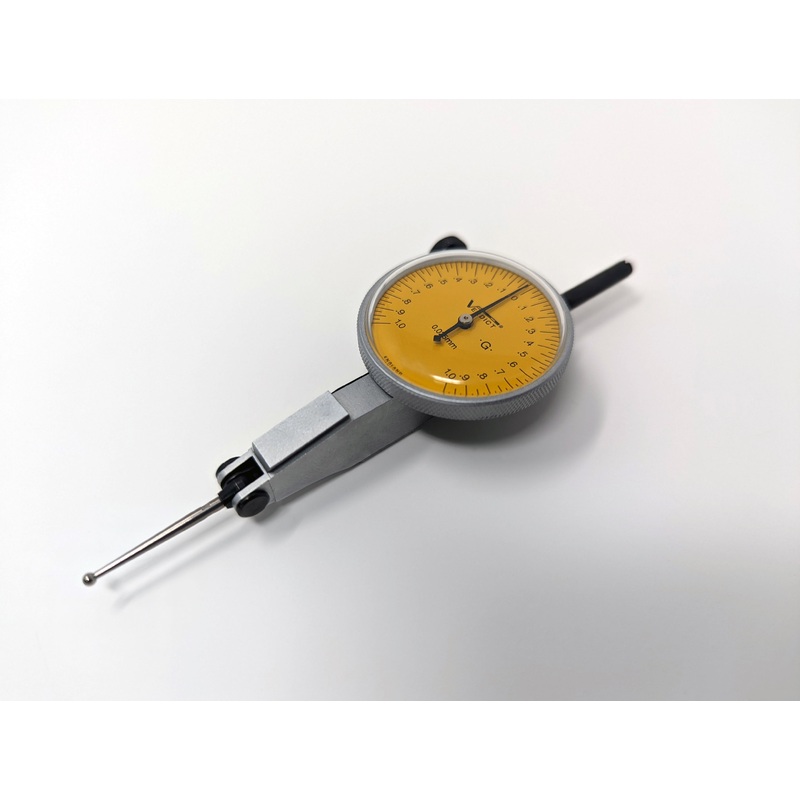

The G Metric Dial Test Indicator (DTI) has a dedicated switch lever for manually reversing the direction of movement depending on user requirements.

Along with user control of the movement direction, these dependable and robust models feature lever pivots that are mounted in ball bearings and provide solid kinetics in all uses.

The indicator body is machined to accept dovetail attachments and it also features a 4mm diameter top spigot that accepts rods up to 6.5mm.

The G is specifically designed to accommodate a longer stylus to overcome practical measuring problems and is therefore supplied with a round stylus point.

G Metric 05/6020
