Description

Replacements for the PXR4 Series, with Universal Inputs and Improved Accuracy!

Self-tuning 1/16 DIN (48 x 48mm) compact temperature and process controller with 50ms sampling speed.

High Quantities and less-common products may take an additional 10 days for shipment. Contact us via phone or Email to request more information on availability.

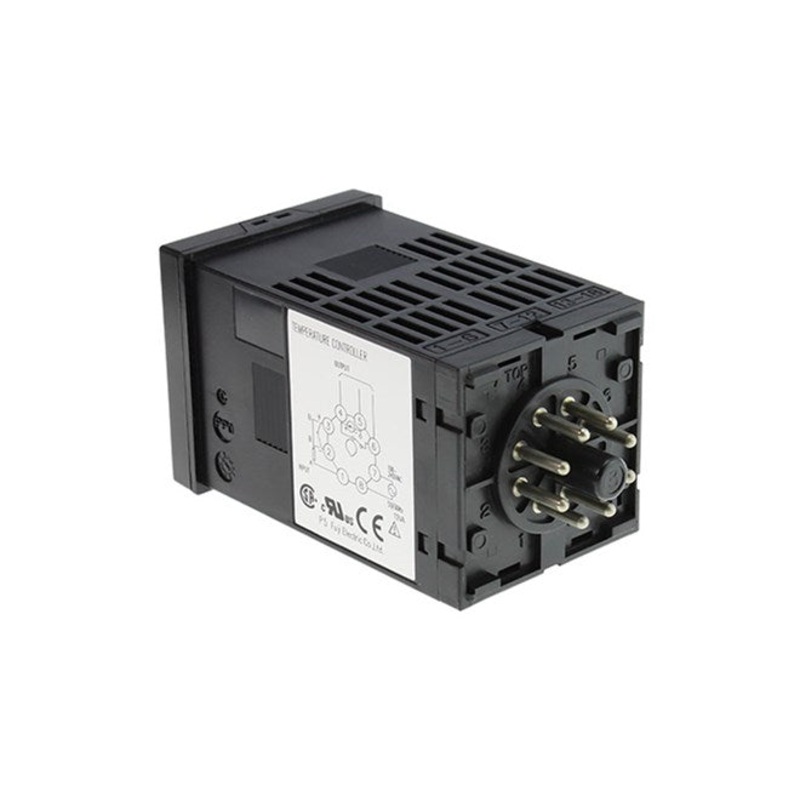

The Fuji Electric PXF4 temperature controller socket-type was developed as a successor to the PXR4 socket-type. It is equipped with multiple input and output options as well as sophisticated control functions making it suitable for a wide range of applications. You can use any input among RTD, thermocouples, voltage, current, and mV. Switching the input is an easy parameter change. The socket terminal on the back makes this unit conveniently plug and play.

The PXF series features highly accurate input indication:

• RTD is 0.2% of indication value 1 digit or 0.8C 1 digit, whichever is larger
• Thermocouple is the larger of 1C 1 digit or 0.3% of indicated value 1 digit
• Voltage and current are 0.3% FS 1 digit

Features:

• Universal input
  • Thermocouple, RTD, voltage, current, mV
• Improved input indication accuracy, up to 0.2%
• 0.1 to 99 second control cycle
• On/Off control & PID controls with auto tuning
  • PID, 2-degrees-of-freedom PID, & fuzzy
  • Open-loop supported PID2 control
• Ramp soak function (simple program control)
  • 64 steps x 1 pattern
  • 32 steps x 2 patterns
  • 16 steps x 4 patterns
  • 8 steps x 8 patterns
• Directly connect to a PC with Optional USB cable This will bus-power the unit

Accessories:

• Fuji Electric PXF USB Loader Cable
• 250 OHM Resistor
• 10 OHM Resistor
• Autonics Wired Sockets

Part Number:

Options:

Input Signal Control Output Alarm Options Power Supply

Input Signal Options:

• A – Universal input, thermocouple/volt, backwards compatible wiring to PXR/W/Z
• N – Universal input, RTD/mA, backwards compatible wiring to PXR/W/Z

Control Output Options:

• B – Relay contact (SPDT)
• C – SSR drive
• E – Current

Alarm Options:

• 4 – None
• G – 2 points (+$35.00)

Power Supply Options:

• V – 100 to 240VAC
• B – 24VAC/DC

Additional Options:

• 1 – None
• M – RS-485 communication
• S – 1 point digital input
• V – RS-485 communication & 1 point digital input
• J – RS-485 communication & CT input
• K – RS-485 communication & remote SV input

Also See:

• Fuji PXF4 Temperature Controller (Non-Socketed)
• Fuji PXF Temperature Controller Series
• Fuji PXF Valve Motor Drive Temperature Controllers

Documents:

Spec Sheets

• Fuji Electric PXF4 Temperature Controller Socketed Datasheet

Manuals

• Fuji Electric PXF4 Temperature Controller Socketed R-Mode Manual
• Fuji Electric PXF4 Temperature Controller Socketed F-Mode Short-Form Manual
• Fuji Electric PXF4 Temperature Controller Socketed F-Mode Manual

Links

• All possible part numbers

PXF4ABU2-4VYA1 PXF4ABU24VYA1 PXF4ABU2-4BYA1 PXF4ABU24BYA1 PXF4ABU2-GVYA1 PXF4ABU2GVYA1 PXF4ABU2-GBYA1 PXF4ABU2GBYA1 PXF4ACU2-4VYA1 PXF4ACU24VYA1 PXF4ACU2-4BYA1 PXF4ACU24BYA1 PXF4ACU2-GVYA1 PXF4ACU2GVYA1 PXF4ACU2-GBYA1 PXF4ACU2GBYA1 PXF4AEU2-4VYA1 PXF4AEU24VYA1 PXF4AEU2-4BYA1 PXF4AEU24BYA1 PXF4AEU2-GVYA1 PXF4AEU2GVYA1 PXF4AEU2-GBYA1 PXF4AEU2GBYA1 PXF4NBU2-4VYA1 PXF4NBU24VYA1 PXF4NBU2-4BYA1 PXF4NBU24BYA1 PXF4NBU2-GVYA1 PXF4NBU2GVYA1 PXF4NBU2-GBYA1 PXF4NBU2GBYA1PXF4NCU2-4VYA1 PXF4NCU24VYA1 PXF4NCU2-4BYA1 PXF4NCU24BYA1 PXF4NCU2-GVYA1 PXF4NCU2GVYA1 PXF4NCU2-GBYA1 PXF4NCU2GBYA1 PXF4NEU2-4VYA1 PXF4NEU24VYA1 PXF4NEU2-4BYA1 PXF4NEU24BYA1 >PXF4NEU2-GVYA1 PXF4NEU2GVYA1 PXF4NEU2-GBYA1 PXF4NEU2GBYA1
