Description
Sanitary Gaskets

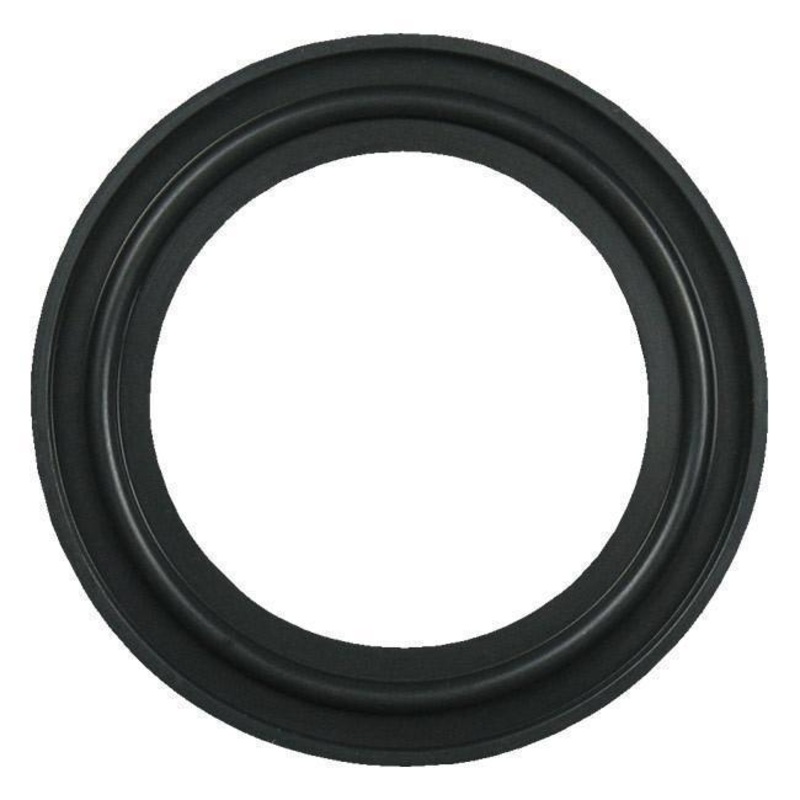

Flanged FKM Tri-Clamp Gaskets are specified by many process equipment manufacturers and are generally suitable for these applications, however service life must be considered and a preventative maintenance program must be in place to mitigate degradation. While acceptable, we do not recommend FKM Gaskets for continuous use in SIP (steam in place) procedures. With that said, FKM Sanitary Gaskets have excellent compatibility with strong acids and maintain a broad range of operating temperatures from -30F to 400F.
Storing FKM Flanged Gaskets:
- Shelf Life: 10 Years from cure date
- Store in original packaging in clean and dry warehouse
- Do not expose to direct sunlight
- Keep more than 6′ away from electric motors
- Maintain temperature between 65F and 85F
Flanged FKM Gasket Standards Compliance:
- FDA CFR 21, 177.2600
- U.S. Pharmacopeia Class VI Certification
- USDA Hazard Analysis and Critical Control Points
- Cytotoxicity Criteria
- USDA and 3-A Sanitary Standards
- ASME-BPE Standards for Type I and Type II
- ADI Free (Animal Derived Ingredient Free)
- Current Good Manufacturing Practices (CGMP)
FKM Flanged Tri-Clamp Gasket Features:
- Color Code: one white dot, one yellow dot
- -30F to 400F Temperature Range
- Acceptable for steam applications
FKM Material is also available in:

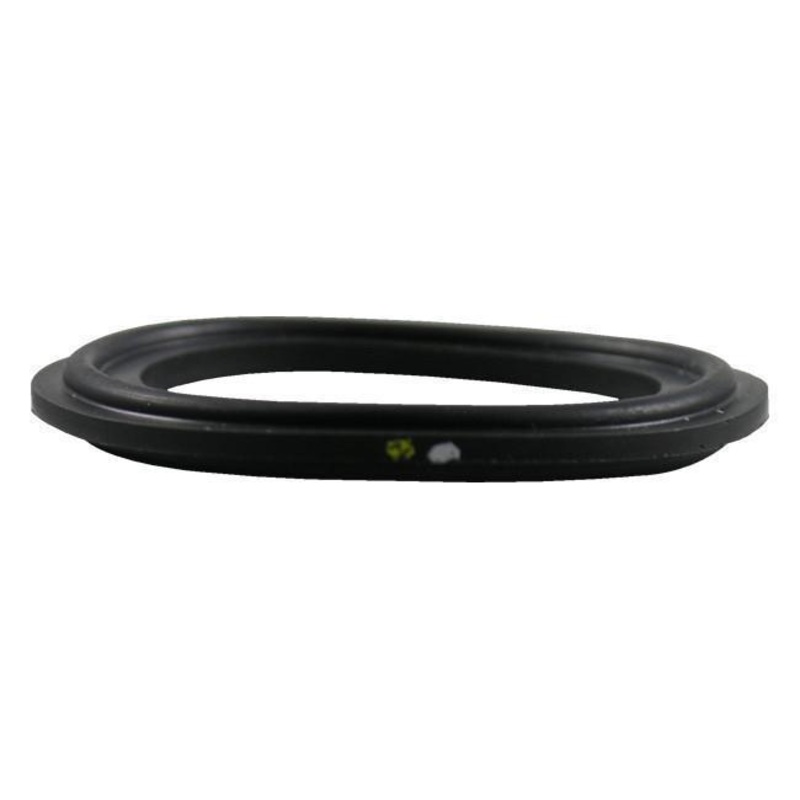

- Type I Unflanged Tri-Clamp Gaskets
- Screen Gaskets
- Sock Gaskets
- Orifice Plate Gaskets
- Gauge Guards
- O-Rings
- Mini Steam Trap Orifice Plates
- ANSI 150# Flange Gasket
- ANSI 300# Flange Gasket
- Bevel Seat Gaskets
- I-Line Gaskets
- John Perry Gaskets
- Q-Line Gaskets
- DIN/ISO
- X-Ray Detectable
- Sheets
- Custom Gaskets, Profiles, Cord, Scrapers
4 = Marginal5 = Poor6 = Do Not Use
Stream
Steam
Water
Ambient
Water
Hot
Fluids
Ambient
Fluids
Hot
Fluid Variables
0-100C
Range
(platinum)
(peroxide)
(peroxide)
