Description
Articulated measuring stands Strato Line XS-13 F + TMS magnetic, mechanical center lock and micro-fine adjustment
Freely adjustable arm
Aluminum linkage
Permanent pot magnet base
Dial mounting hole 3/8″
Delivered in individual packages, without dial gauge
Applications:

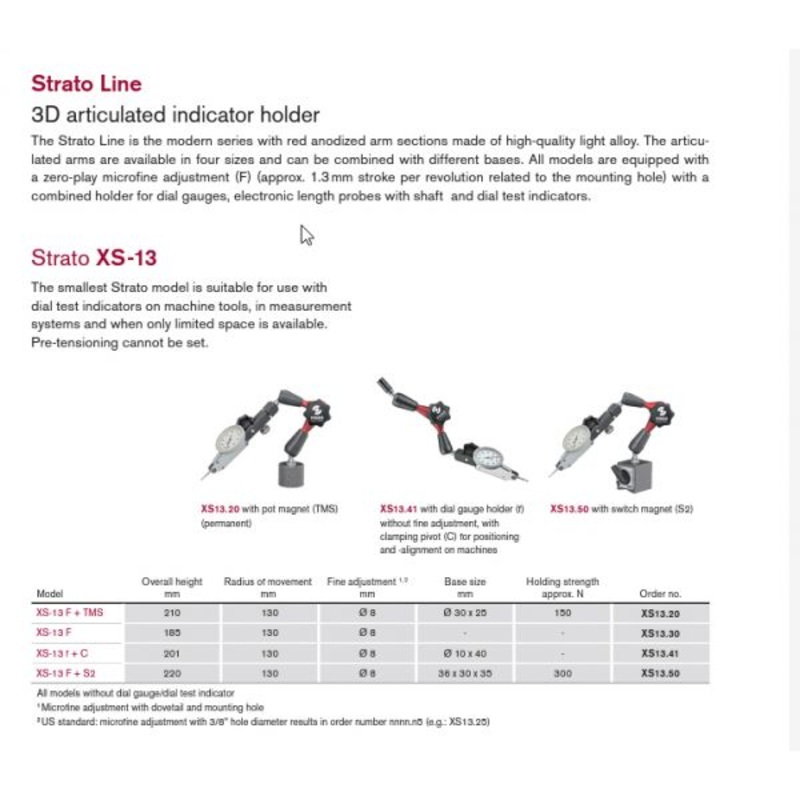

The smallest Strato model is suitable for use with dial test indicators on machine tools, in measurement systems, and when only limited space is available. Pre-tensioning cannot be set.
Articulated measuring stands Strato Line S-20 F + S + TM magnetic, mechanical center lock and micro-fine adjustment.
Size: 200/335mm
Brand: FISSO
Manufacturer number: XS13.20 (XS-13 F + TMS) with pot magnet
Base: pot magnet
Base dimension: 40x30mm
Range/height: 220/335mm
Height: 335mm
Fine adjustment: 8mm
Adhesive force: 300N
Fisso Strato line 3D articulated gauging arm XS13.25 (XS-13 F + TMS) with pot magnet (TM) (permanent)
